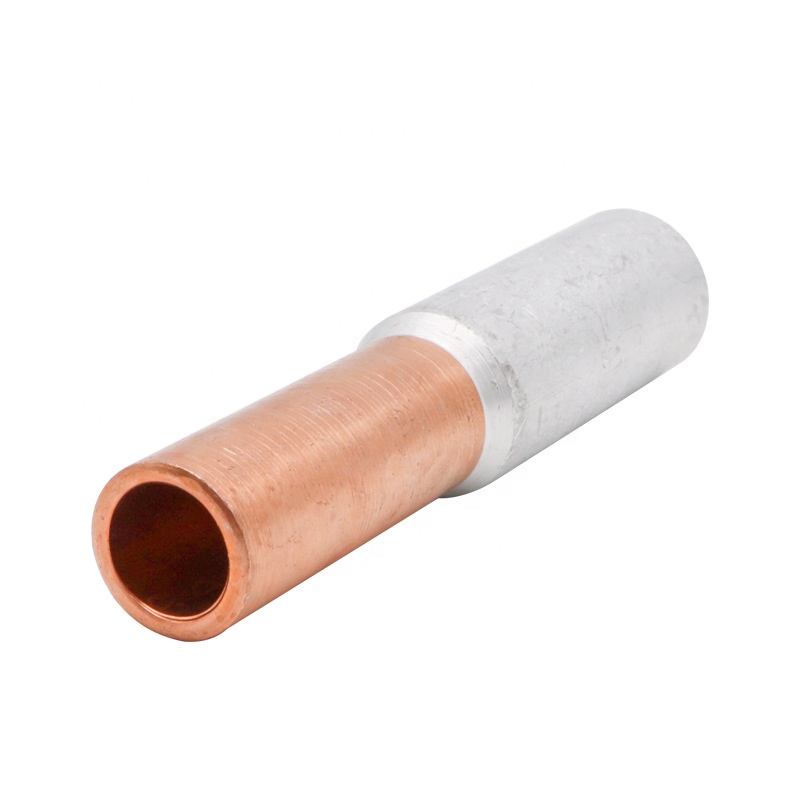

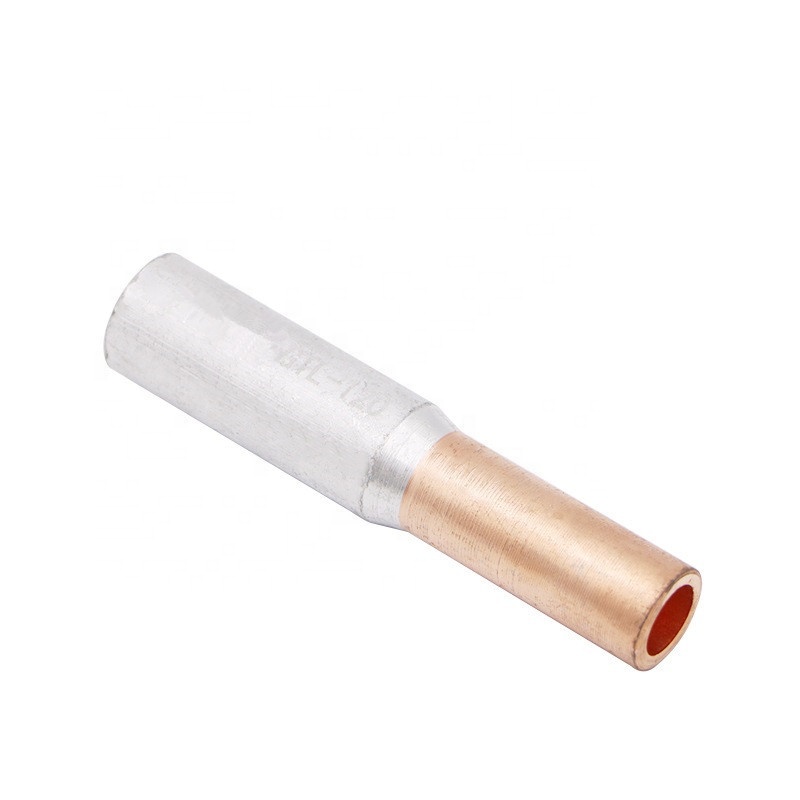

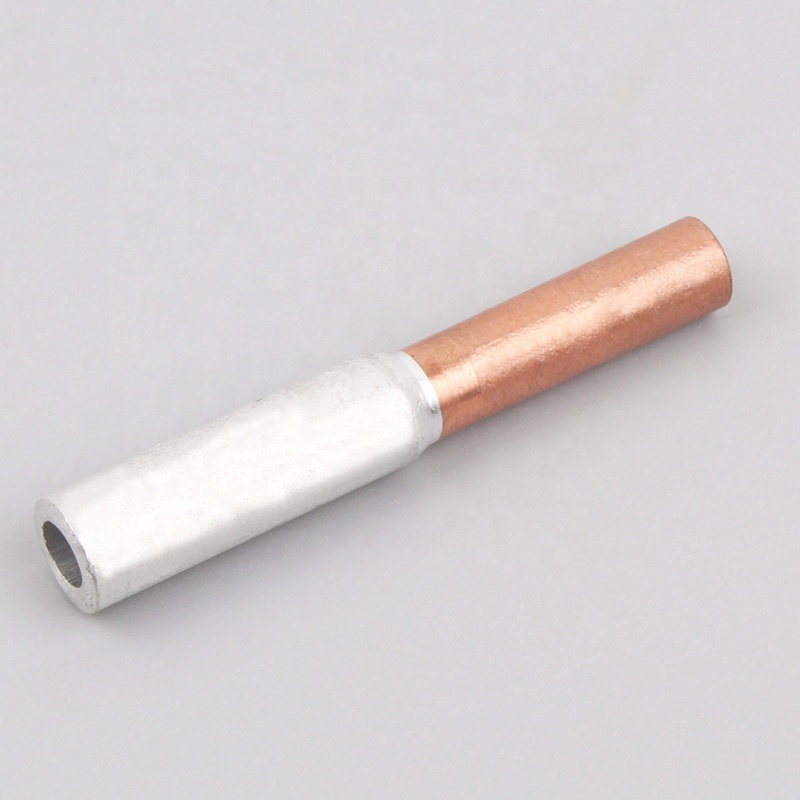

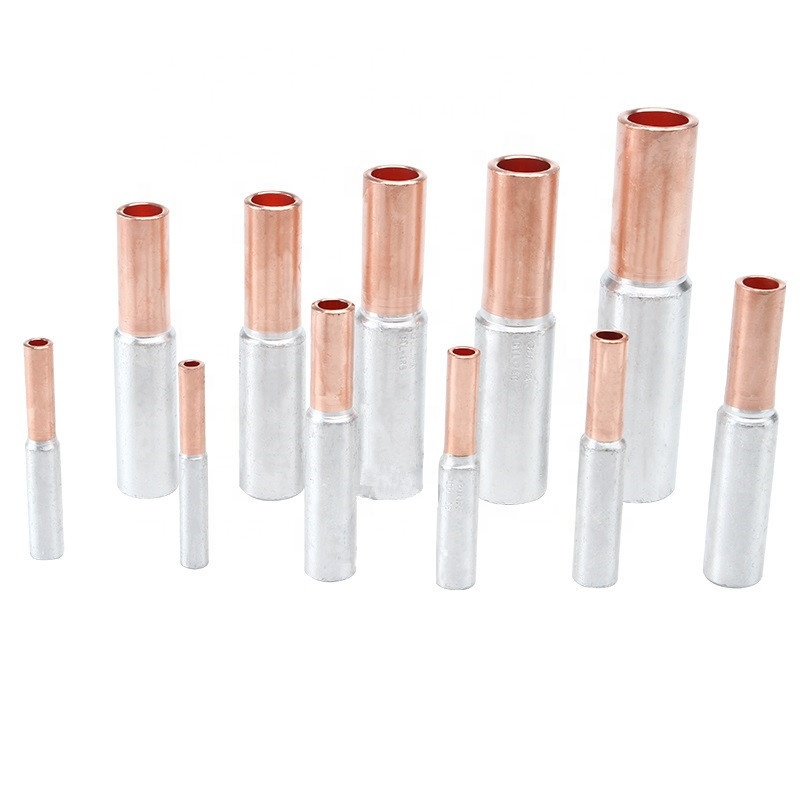

GTL series copper aluminium terminal connector tube bimetallic cable Lug Featured Image
  • GTL series copper aluminium terminal connector tube bimetallic cable Lug
  • GTL series copper aluminium terminal connector tube bimetallic cable Lug
  • GTL series copper aluminium terminal connector tube bimetallic cable Lug
  • GTL series copper aluminium terminal connector tube bimetallic cable Lug
  • GTL series copper aluminium terminal connector tube bimetallic cable Lug

GTL series copper aluminium terminal connector tube bimetallic cable Lug

Short Description:


Download as PDF

Product Detail

Product Tags

Overview
Quick Details
Model Number:   GTL series
Type:   lug terminals, : Crimp Terminal
Place of Origin:   Zhejiang, China
Packaging:   White inner box + export carton box
Description:   Copper Connecting Terminals
Production Name:   GTL connecting tube
Material:   Copper-Aluminum
Cable range:   16-630mm2
Joining Method:   Firction Welding
Tensile Strength:   110Mpa
Operating Temperature:   -40℃ to 100℃
Standard:   IEC61238,AS4325,UNI EN 573-3 : 2009,UNI EN 13600:2003
H866cc97c9e4b4ec1aa9de24c6890e306h

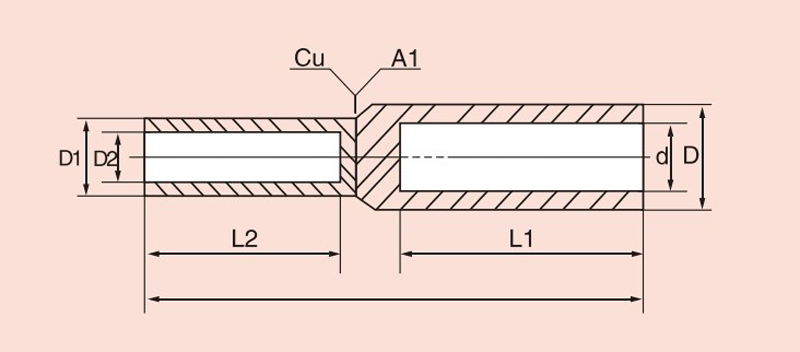

 Model
D
d
           D1
           L1
        L2
        L
GLT -16
10
6
9
30
30
70
GLT -25
12
7
10
33
30
75
GLT -35
14
8.5
11
40
30
85
GLT -50
16
9.8
13
42
32
95
GLT -70
18
11.5
15
50
38
105
GLT -95
21
13.5
17
50
40
110
GLT -120
23
15
19
55
42
112
GLT -150
25
17
21
55
44
118
GLT -185
27
18.5
23
60
46
125
GLT -240
30
21
26
60
54
130
GLT -300
34
23
28
65
56
145
GLT -400
38
27
30
70
60
155
GLT -500
43
29
34
75
65
165



Specification
Copper Open Connecting Nose

1.Suitable for the connection of copper conductors in the distribution equipment.

2. These products are applicable connect the circular wire and hemicycle sertor wire in distribution equipemnt or power supply cables.
