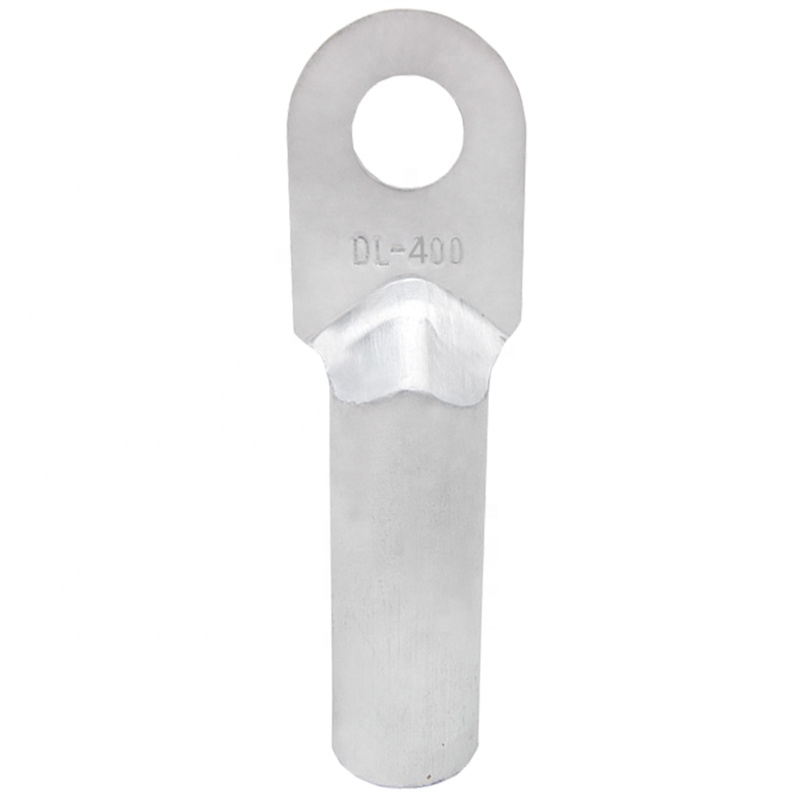

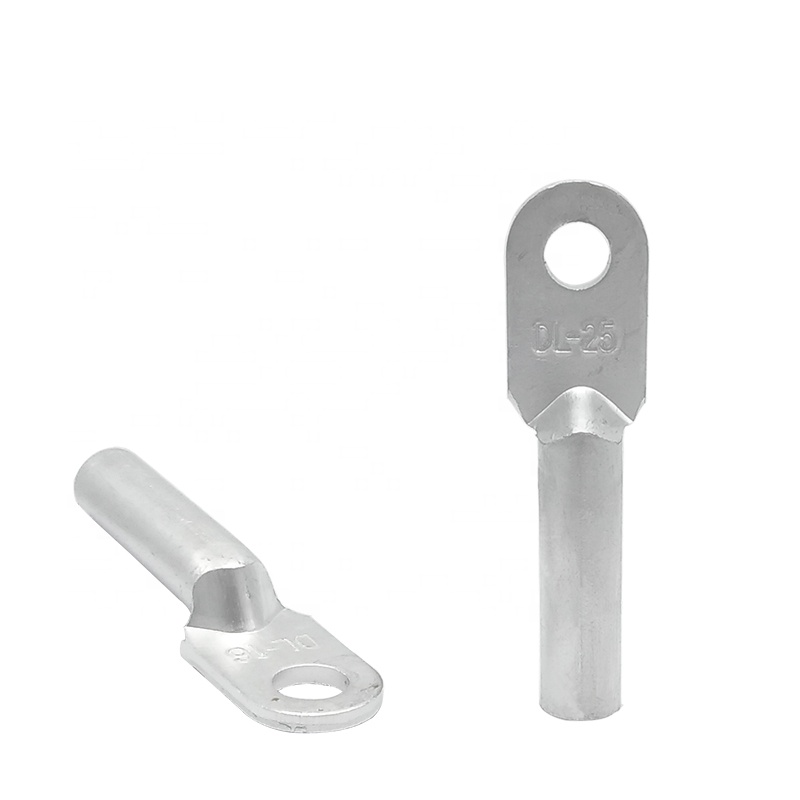

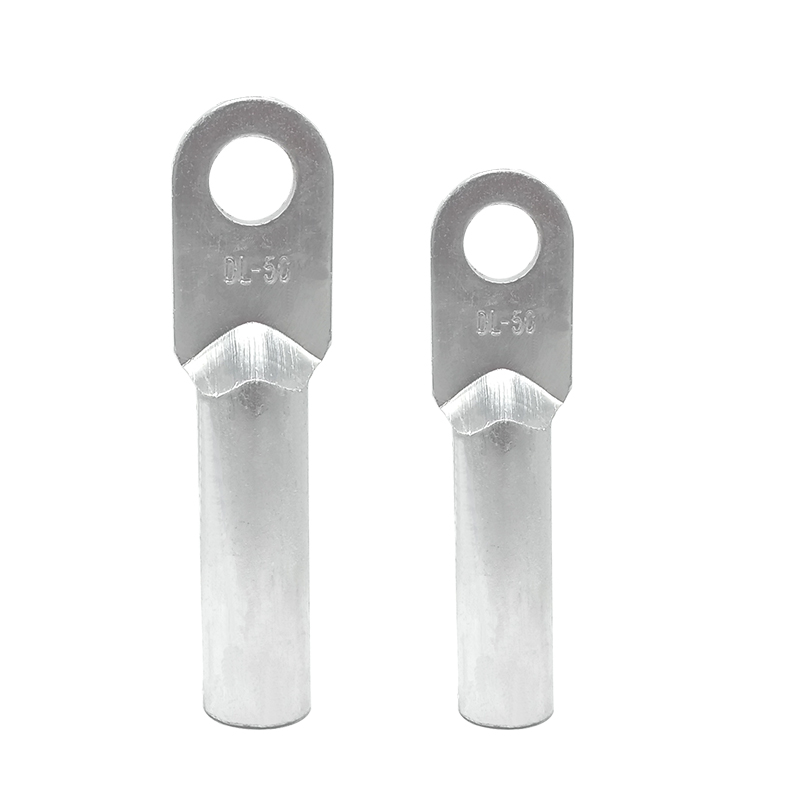

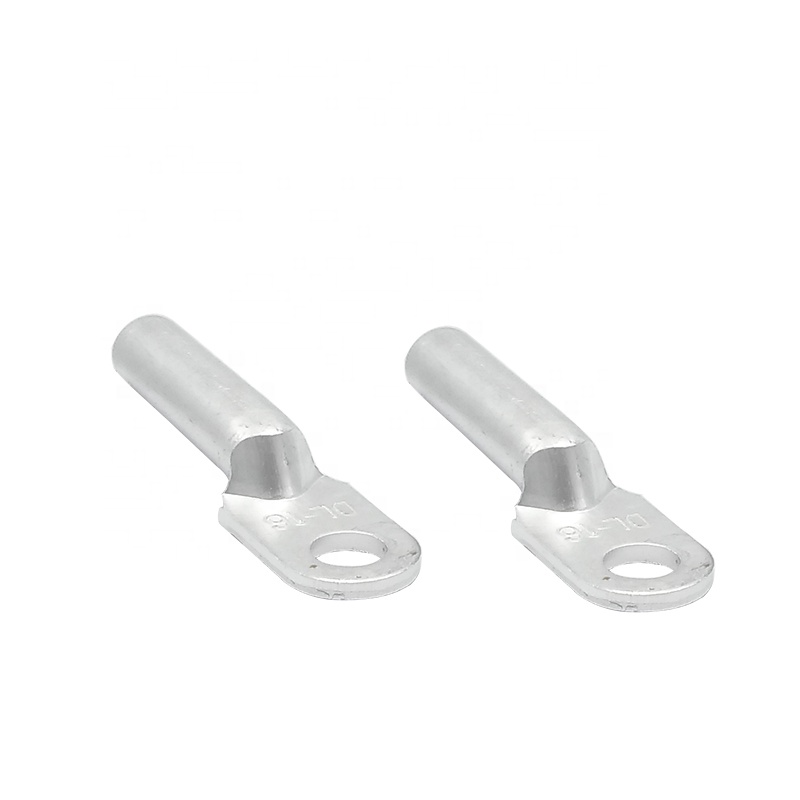

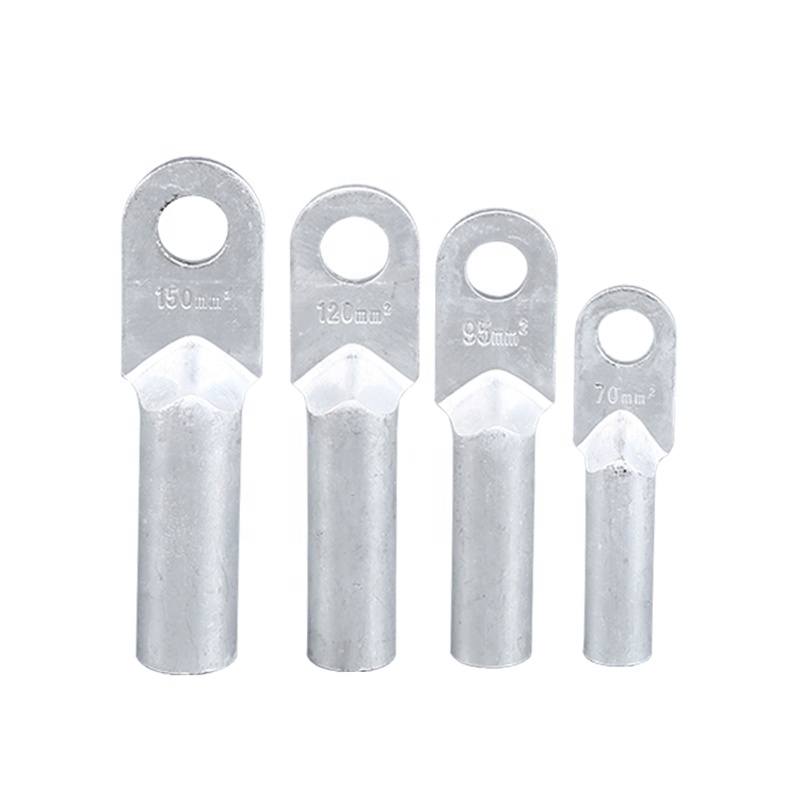

DL Series electric aluminium terminal lug cable lug

Product Detail

Overview

Quick Details

Application: 1kV-33kV medium and high voltage cable connections and terminals

Standard: IEC61238,AS4325,UNI EN 573-3 : 2009,UNI EN 13600:2003

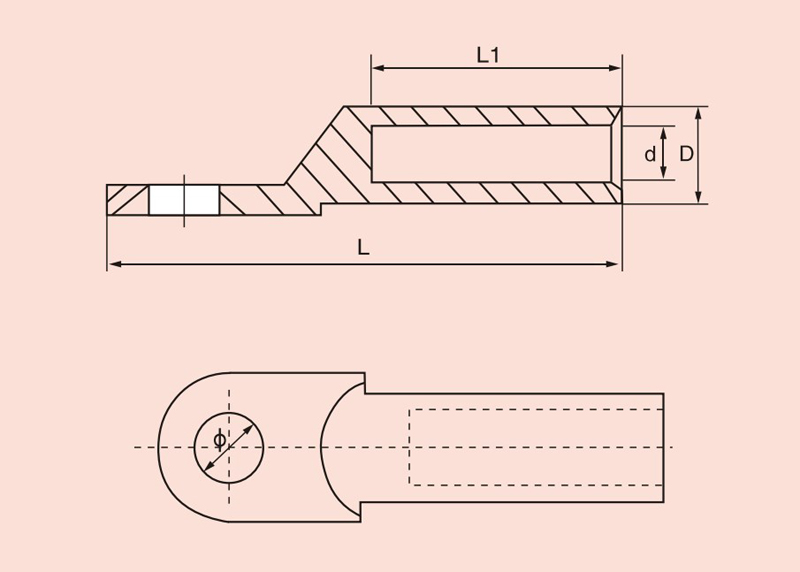

Model Φ D d L L1 DT -10 8.5 9 6 68 28 DT -16 8.5 10 6.5 70 30 DT -25 8.5 12 7 75 34 DT -35 10.5 14 8.5 85 38 DT -50 10.5 16 9.8 90 40 DT -70 12.5 18 11.5 102 48 DT -95 12.5 21 13.50 112 51 DT -120 14.5 23 15 120 53 DT -150 14.5 25 16.5 126 56 DT -185 16.5 27 18.5 133 58 DT -240 16.5 30 21 140 60 DT -300 21 34 24 160 65 DT -400 21 38 26 170 70 DT -500 21 47 29 190 75 DT -630 21 54 35 220 85 DT -800 21 60 38 250 100 Specification 1.DT Copper Bar Cable tube terminal,connector terminal,copper terminal,crimp terminal,cable accessories terminal,electric terminal. 2.Application: products are suitable for the conjunction of wires,cables in the distribution equipment and the electrical equipment. aluminium cable lugs are pressed with aluminium bar(L3),Copper cable lugs with copper bar(T2); 3.Connecting terminals are suitable for the conjunction of wires,cable in the distribution equipment and the electrical equipment.
