90 degree copper tube terminals standard barrel / 600V To 35KV
Overview
Quick Details
- Model Number: GPH 90 degree copper tube terminals
- Type: lug terminals
- Place of Origin: Zhejiang, China
- Packaging: White inner box + export carton box
- Description: Copper Connecting Terminals
- Material: Copper Palm 99.95% Cu /Aluminium Sleeve 99.5% Alu
- Surface treatment: Tin plated
- Tensile Strength: 110Mpa
- Standard: IEC61238,AS4325,UNI EN 573-3 : 2009,UNI EN 13600: 2003
-
Specification* Angle tubular Copper Cable Lug terminal lug

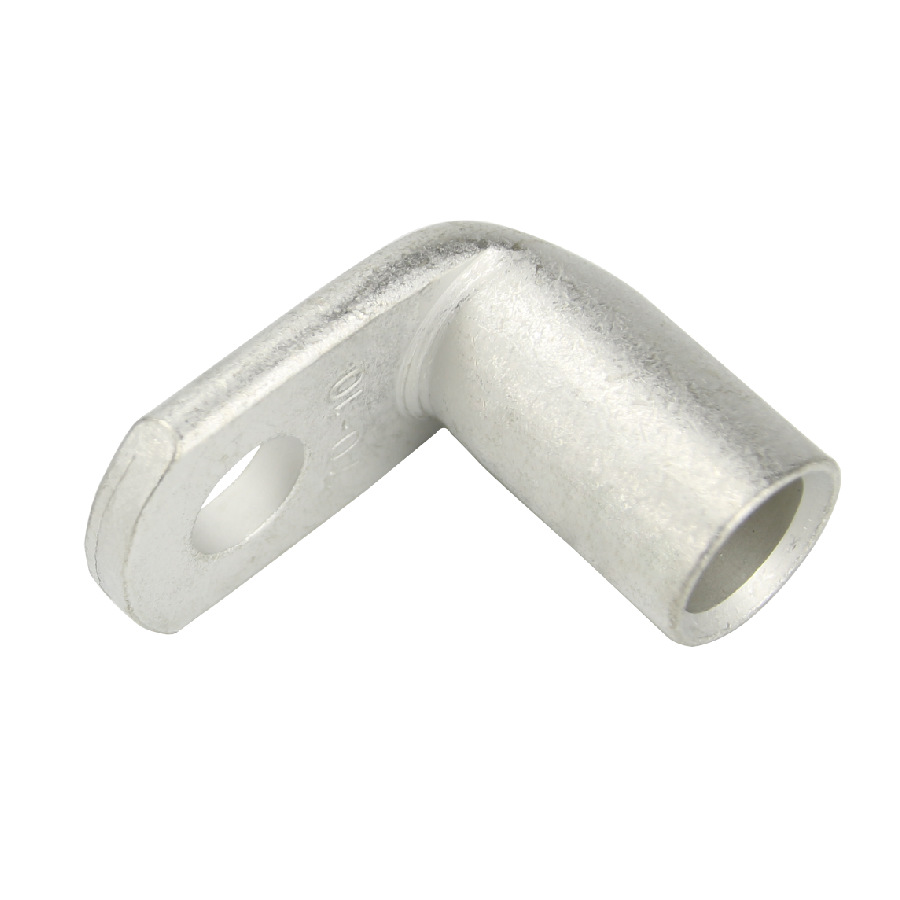

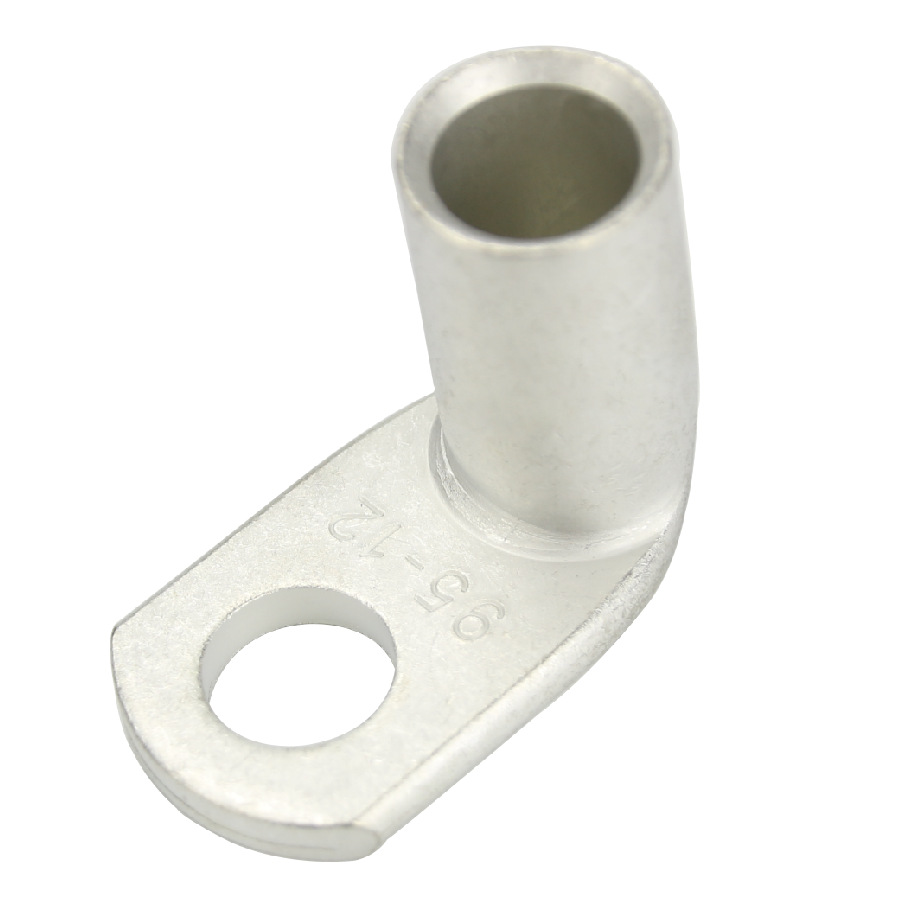

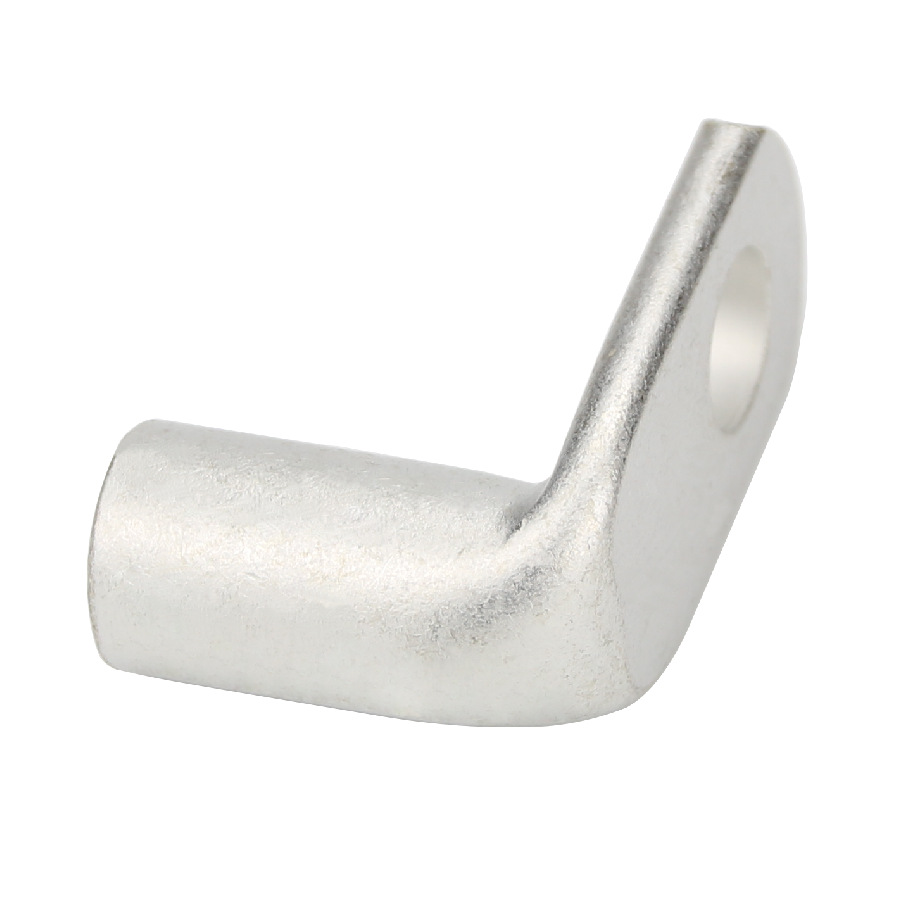

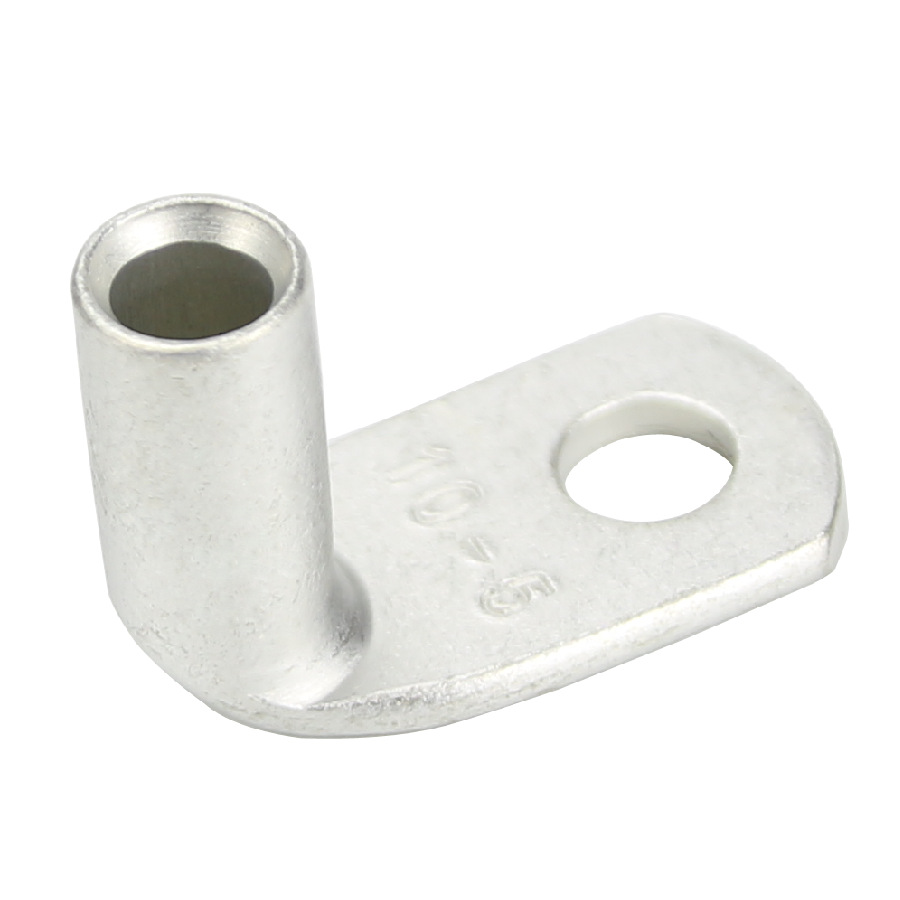

* Angle tubular cable lugs, copper, 90° angled, J type
* For multi-stranded round shaped conductors e.g. VDE 0295 Class 2
* For pre-rounded multi-stranded sector shaped conductors
* Flat contact surface by special angle punching technology
