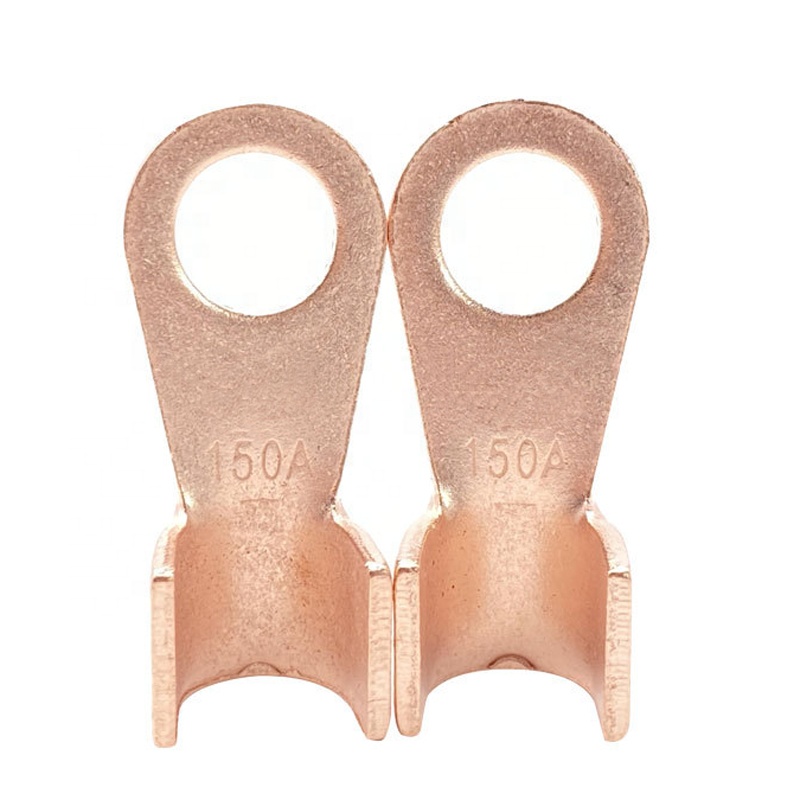

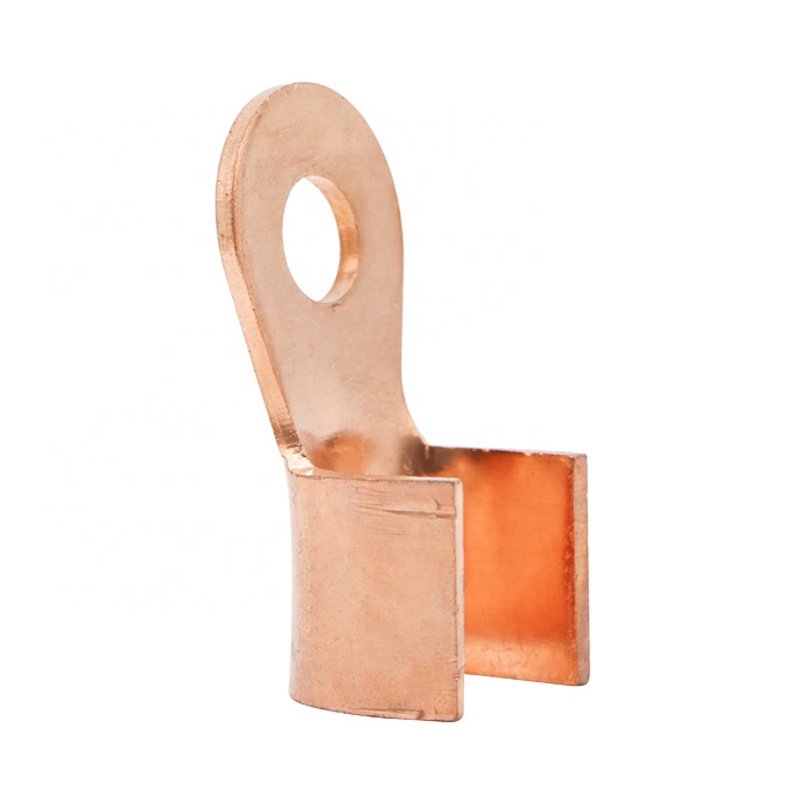

OT copper open connecting nose

Short Description:


Download as PDF

Product Detail

Product Tags

Overview
Quick Details
Model Number:   OT series
Type:   lug terminals
Place of Origin:   Zhejiang, China
Packaging:   White inner box + export carton box
Description:   Copper Connecting Terminals
Production Name:   Copper Open Connecting Nose
Material:   copper
Functions:   Fixing and connection for cables.
Operating Temperature:   -40℃ to 100℃
Standard:   IEC61238,AS4325,UNI EN 573-3 : 2009,UNI EN 13600:2003
H1185dec8c2b2466d800672a80515851dU

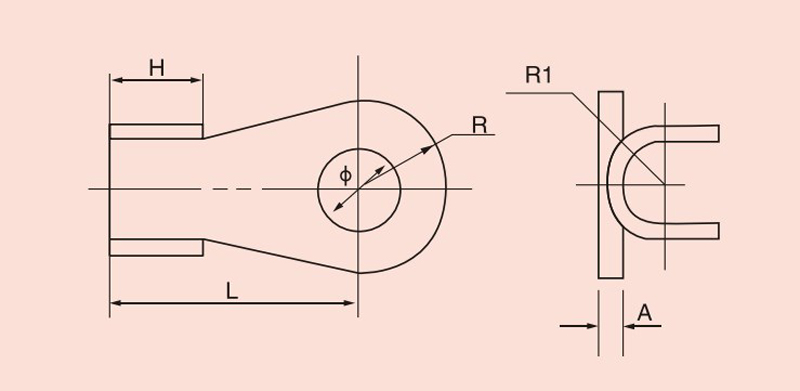

 Model
Φ
H
           L
           R
       R1
         A
OT -10A
5.2
6
14.5
4.5
2
0.8
OT -20A
6.2
7
17
5.5
2.5
1

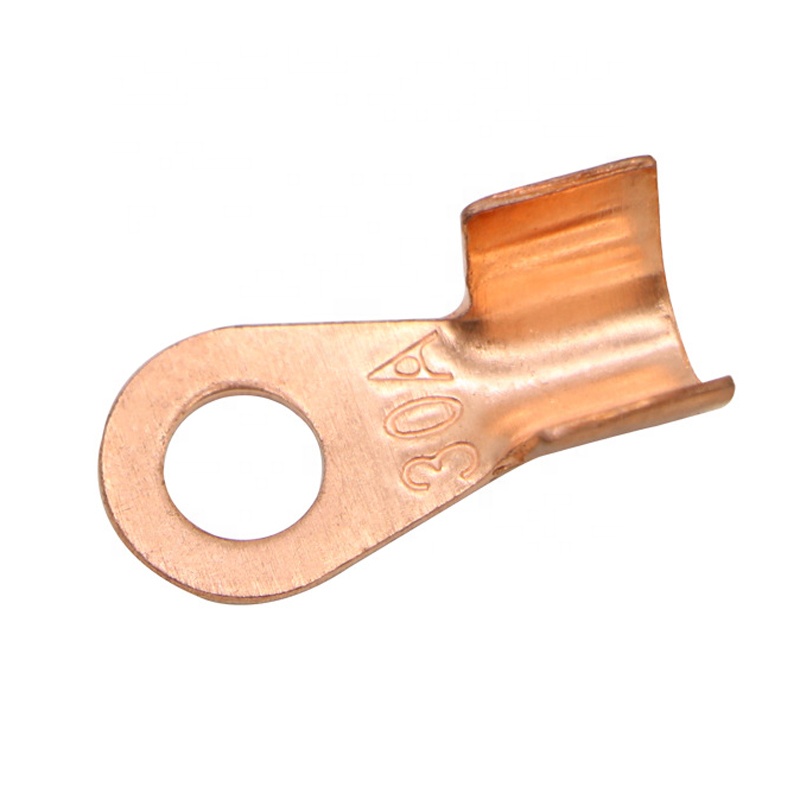

OT -30A
6.2
8.2
19
5.8
3.2
1.2
OT -40A
6.2
9
19.5
6.2
3.5
1.2
OT -50A
6.2
9
21.5
6.5
3.5
1.2
OT -60A
8.2
10
23
7
4
1.4
OT -80A
8.2
11
25
8
4.5
1.5
OT -100A
8.2
12
29
8.5
5
1.5
OT -150A
10.2
12
31
9
5.5
1.6
OT -200A
10.2
14
33
10
6
1.7
OT -250A
10.2
15.5
36
10.5
6.5
2
OT -300A
12.2
16
40
11.5
7
2
OT -400A
12.2
18
43
13
8
2.2
OT -500A
14.2
20
46
14.5
8.5
2.4
OT -600A
16.2
22
50.5
16
10.5
2.8
OT -800A
18.2
26
61
17.5
12.5
3.2
                OT -1000A
18.2
33
66
20.5
15.5
3.8



Specification
Copper Open Connecting Nose

1.Suitable for the connection of copper conductors in the distribution equipment.

2. These products are applicable connect the circular wire and hemicycle sertor wire in distribution equipemnt or power supply cables.
