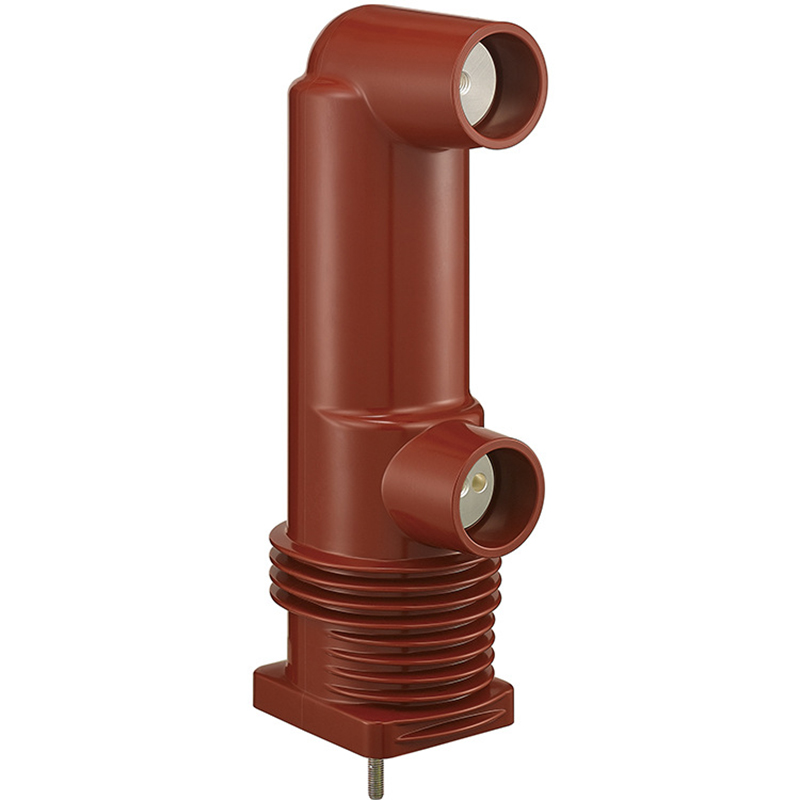

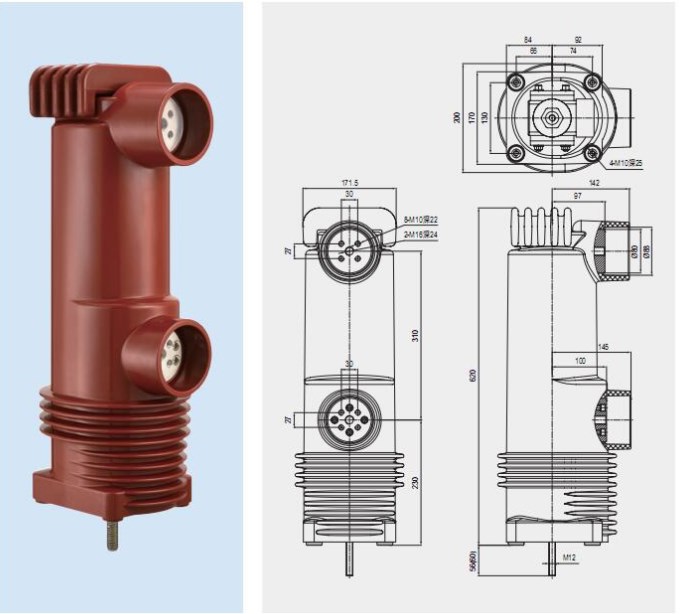

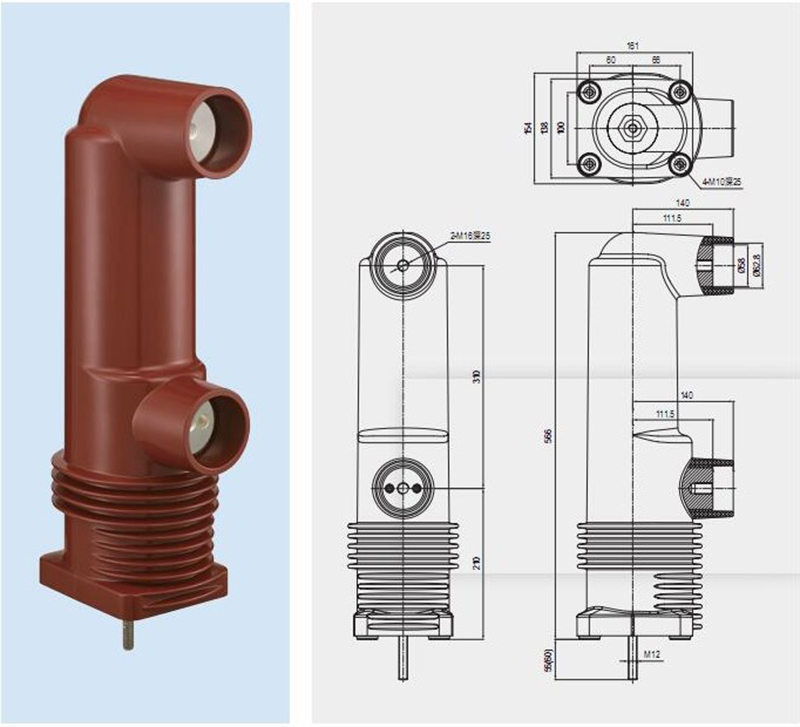

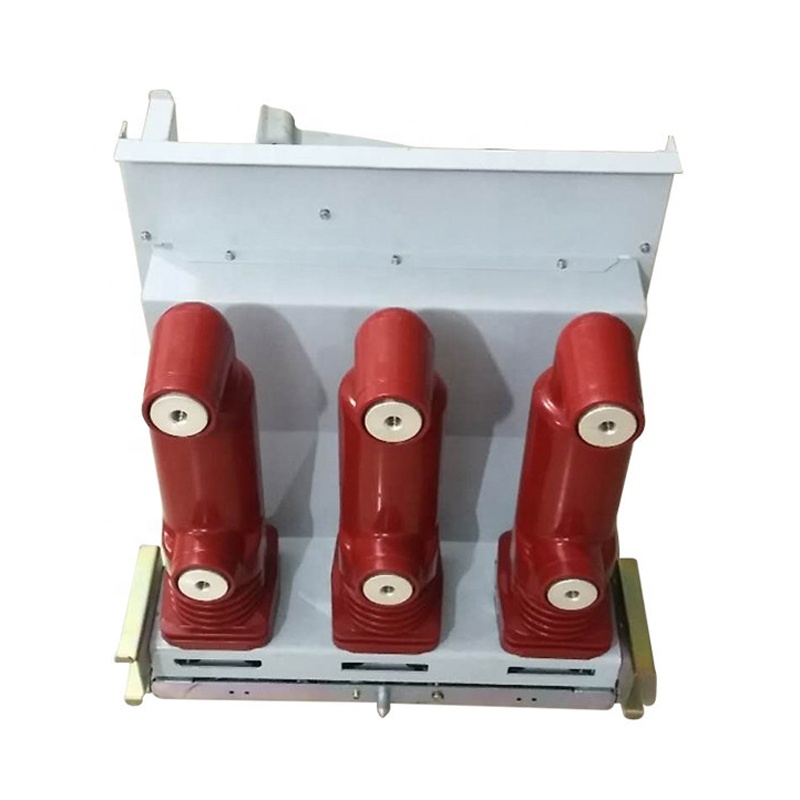

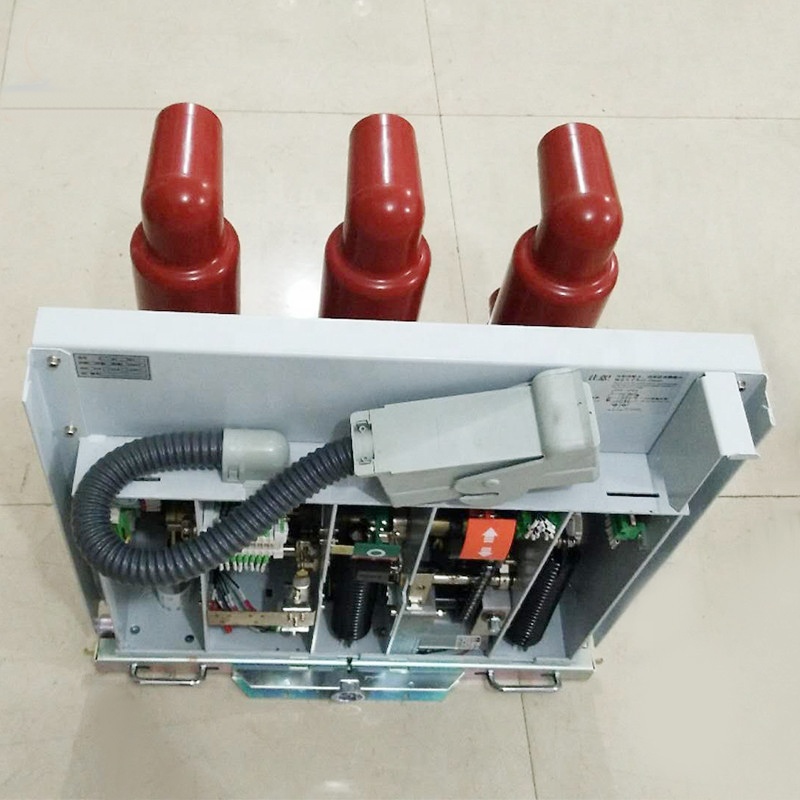

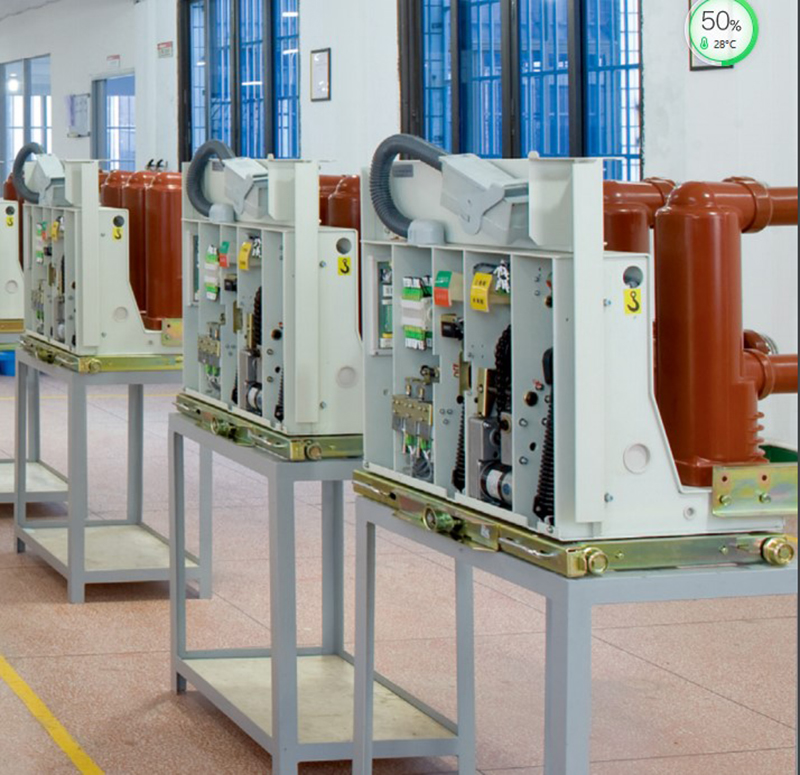

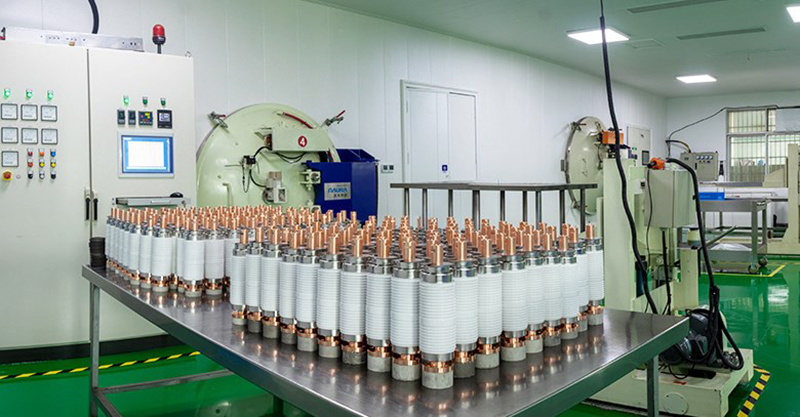

24 kV 3150A High quality closed pole epoxy resin embedded poles Vacuum interrupter for vacuum circuit breaker VCB
Overview
Quick Details
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
LEQI
- Model Number:
-
TEP-24/3150/40
- Type:
-
Vacuum
- Poles Number:
-
3
- Rated Voltage:
-
24KV
- Rated Frequency:
-
50Hz
- Product name:
-
Vacuum interrupter for vacuum circuit breaker VCB
- Rated voltage:
-
24KV
- Rated current:
-
3150A
- Rated frequency:
-
50Hz
- Breaking capacity:
-
40KA
- Pole:
-
3
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Place
|
Zhejiang
|
|
Brand Name
|
LEQI
|
|
Model Number
|
TEP-24/3150/40
|
|
Type
|
Vacuum
|
|
Poles Number
|
3
|
|
Rated Frequency
|
50Hz
|
|
Product name
|
Vacuum interrupter for vacuum circuit breaker VCB
|
|
Rated voltage
|
24 KV
|
|
Rated current
|
3150A
|
|
Rated frequency
|
50Hz
|
|
Breaking capacity
|
40KA
|
|
Pole
|
3
|
|
Main Techical Data:
|
||||
|
Rated Voltage:
|
24KV
|
|||
|
Rated current:
|
3150A
|
|||
|
Rate frequency:
|
50HZ
|
|||
|
Rated short-time power frequency withstand voltage(1min)
|
65KV
|
|||
|
Rated lighting implus withstand current
|
125KV
|
|||
|
Rated short-circuit breaking current
|
40KA
|
|||
|
Breaking operations of rated short circuit breaking current
|
30 times
|
|||
|
Rated short-time withstand current
|
40KA
|
|||
|
Rated short-circuit lasting time
|
4s
|
|||
|
Rated peak withstand current
|
80/100KA
|
|||
|
Rated short-circuit making current
|
80/100KA
|
|||
|
Rated single capacitor bank breaking current *
|
400/630A
|
|||
|
Rated back-to-back cap acitor breaking current
|
400A
|
|||
|
Mechanical life
|
10000times
|
|||
|
Contact closing force due to bellows and atmosphere
|
230±50N
|
|||
|
Counter force at rated contact stroke
|
350±50N
|
|||
|
Contact erosion limit
|
3mm
|
|||
|
Part discharge
|
≤3pC
|
|||
|
Rated operation sequence
|
O-0.3s-co-180s-co
|
|||
|
Mechanical Date Required for Matched Vacuum Switchgear
|
||||
|
Clearance between open contacts
|
13±1mm
|
|||
|
Over travel
|
3.5±1mm
|
|||
|
Average opening speed
|
1.3±0.2m/s
|
|||
|
Average closing speed
|
0.8±0.2m/s
|
|||
|
Rated contact force
|
4500±200N
|
|||
|
contact bouncing duration at closing operation
|
≤2ms
|
|||
|
Out of simultaneity of contact closing and opening
|
≤2ms
|
|||
|
bouncing back amplitude of opening contact
|
≤2mm
|
|||
Packing & Delivery
