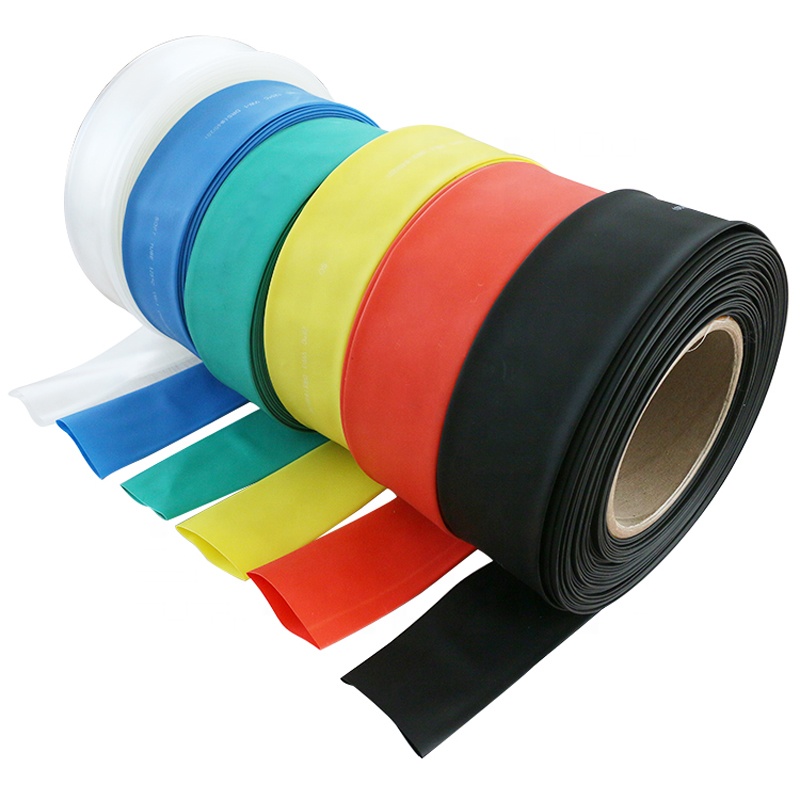

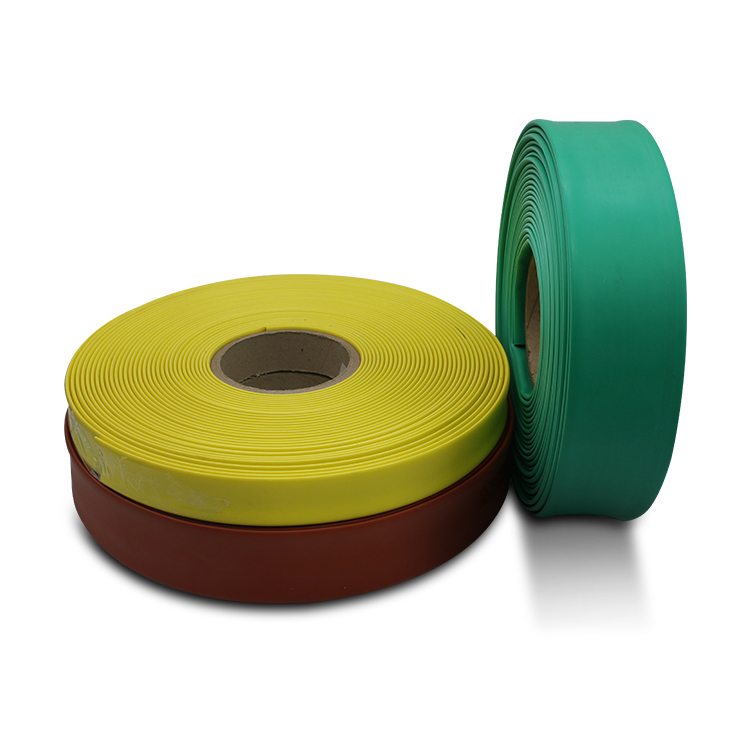

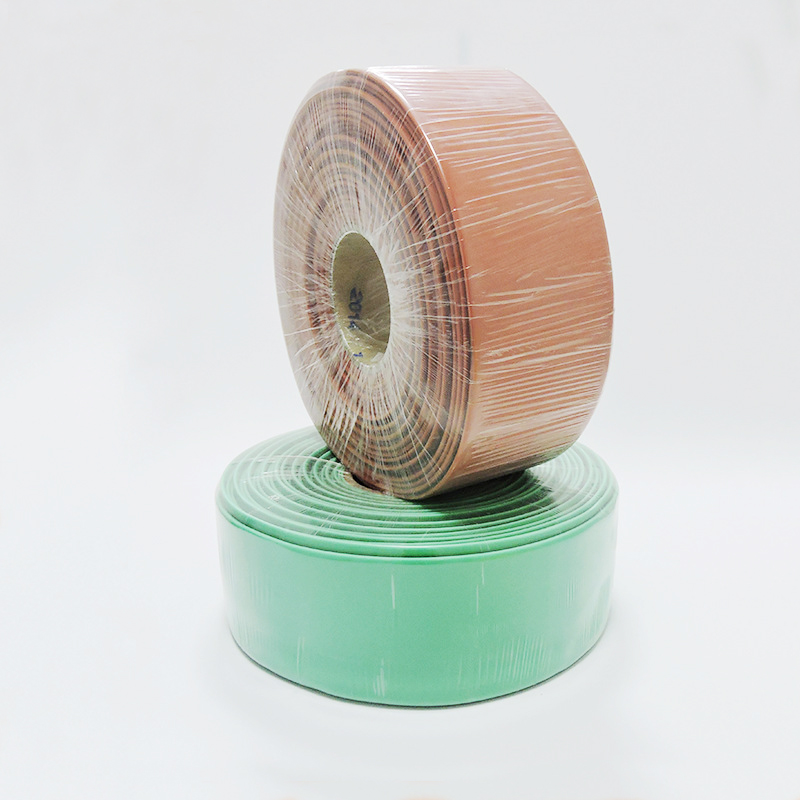

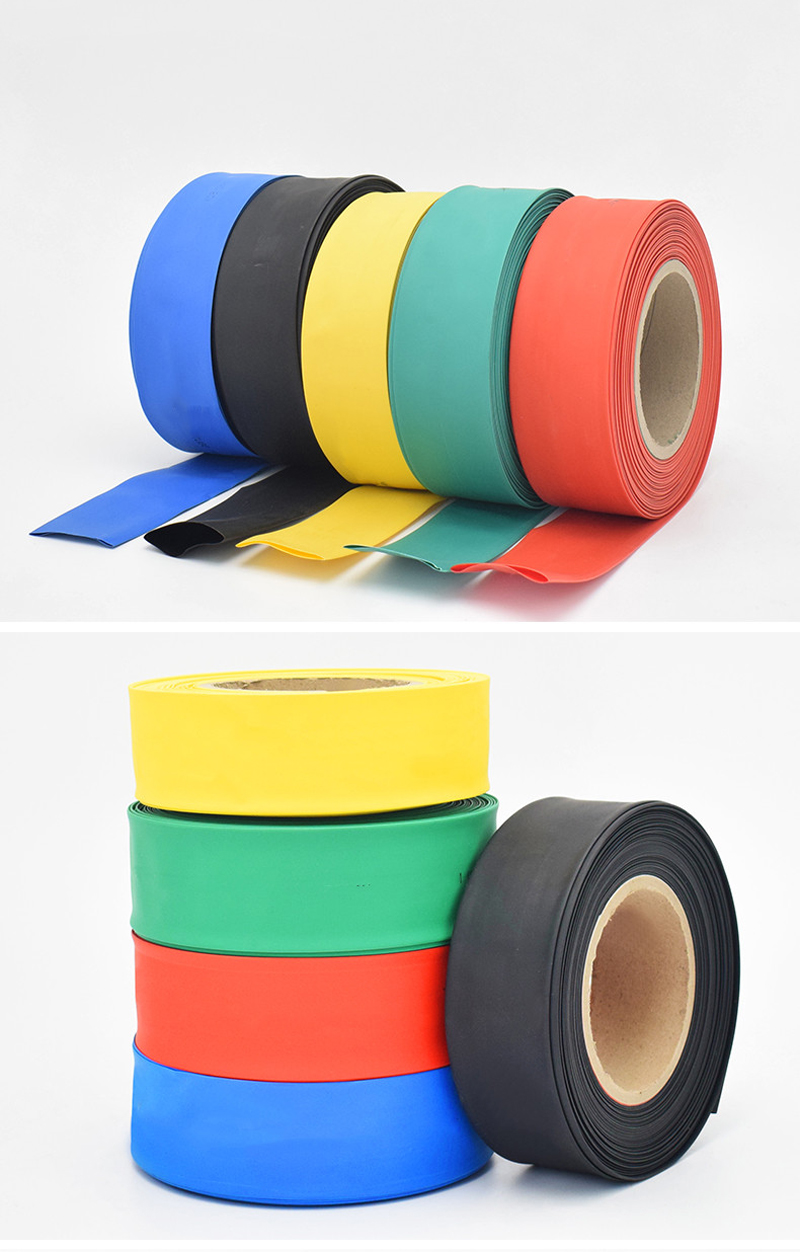

1KV UL heat shrink/shrinking /shrinkable tube , colorful electrical shrinkable sleeve tubing fire resistance
Overview
Quick Details
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
LEQI
- Model Number:
-
0.6mm~180mm
- Type:
-
Insulation Sleeving
- Material:
-
PE
- Application:
-
LOW VOLTAGE
- Rated Voltage:
-
600V
- Tensile Strength:
-
10.4Mpa
- Color:
-
Color: Black / White/Grey / Blue or customi

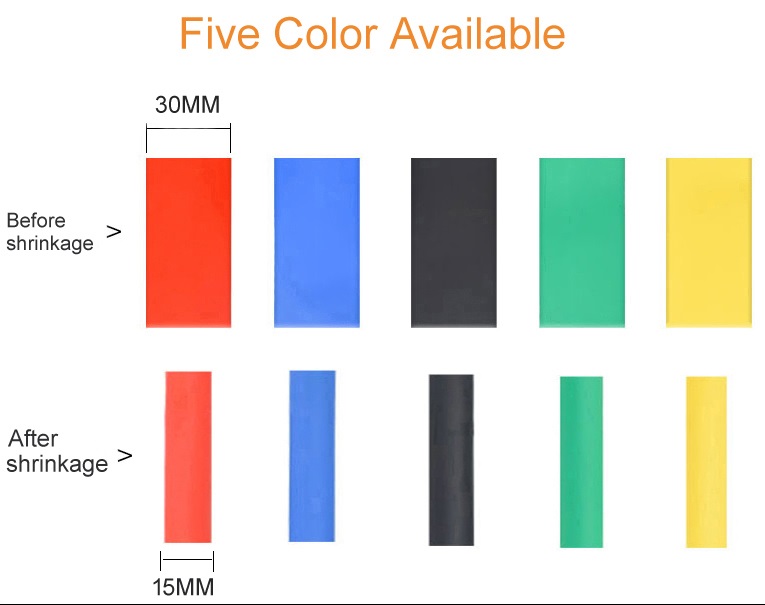

- Shrink Ratio:
-
2:1 or customized
- Usage:
-
Insulation Protection
- Feature:
-
Heat-Resistant
- Thickness:
-
0.16-0.50mm
- Temperature Range:
-
-40-125 Degrees Celsius
- Sample:
-
for free
Product Description
PE heat shrinkable tube has the following properties: low recovery temperature rapid shrinking, very flexible, etc .It may be important in the prevention of overheating of temperature sensitive components.
The Product has been passed by UL authorities.

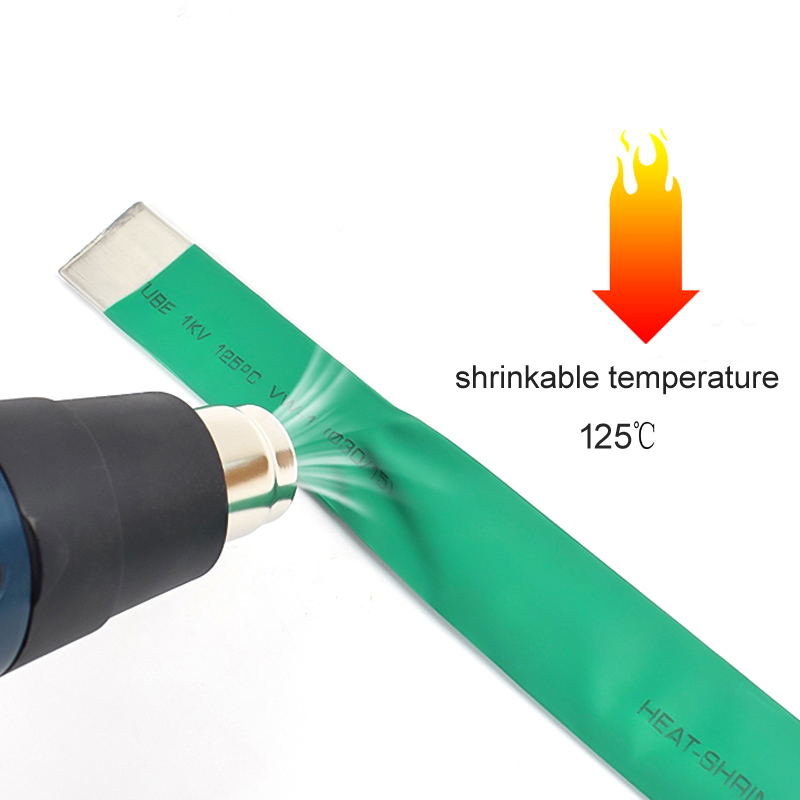

Temperature resistance: 125°C Grade of voltage: 600V
| Size | Before Shrink (mm) | After Shrunk (mm) | Package | ||
| Inside Diameter | Average Layer Thickness | Inside Diameter | Average Layer Thickness | Mt/coils | |
| Φ0.6 | 0.9±0.2 | 0.10±0.05 | ≤0.40 | 0.22±0.10 | 200 |
| Φ0.8 | 1.0±0.2 | 0.15±0.05 | ≤0.50 | 0.22±0.10 | 200 |
| Φ1.0 | 1.5±0.3 | 0.15±0.05 | ≤0.65 | 0.28±0.10 | 200 |
| Φ1.5 | 2.0±0.3 | 0.20±0.02 | ≤0.75 | 0.42±0.10 | 200 |
| Φ2.0 | 2.5±0.3 | 0.20±0.02 | ≤1.0 | 0.44±0.10 | 200 |
| Φ2.5 | 3.0±0.3 | 0.22±0.02 | ≤1.25 | 0.47±0.10 | 200 |
| Φ3.0 | 3.5±0.4 | 0.25±0.02 | ≤1.5 | 0.50±0.10 | 200 |
| Φ3.5 | 4.0±0.4 | 0.25±0.02 | ≤1.75 | 0.50±0.10 | 200 |
| Φ4.0 | 4.5±0.4 | 0.25±0.02 | ≤2.0 | 0.50±0.10 | 200 |
| Φ4.5 | 5.0±0.4 | 0.25±0.02 | ≤2.3 | 0.50±0.10 | 100 |
| Φ5.0 | 5.5±0.4 | 0.25±0.02 | ≤2.5 | 0.52±0.10 | 100 |
| Φ6.0 | 6.5±0.4 | 0.25±0.02 | ≤3.0 | 0.52±0.10 | 100 |
| Φ7.0 | 7.5±0.4 | 0.30±0.02 | ≤3.5 | 0.62±0.10 | 100 |
| Φ8.0 | 8.5±0.5 | 0.36±0.02 | ≤4.0 | 0.72±0.10 | 100 |
| Φ9.0 | 9.5±0.5 | 0.36±0.02 | ≤4.5 | 0.72±0.10 | 100 |
| Φ10 | 10.5±0.5 | 0.36±0.02 | ≤5.0 | 0.72±0.10 | 100 |
| Φ11 | 11.5±0.5 | 0.36±0.02 | ≤5.5 | 0.72±0.10 | 100 |
| Φ12 | 12.5±0.5 | 0.36±0.02 | ≤6.0 | 0.72±0.10 | 100 |
| Φ13 | 13.5±0.5 | 0.36±0.02 | ≤6.5 | 0.77±0.10 | 100 |
| Φ14 | 14.5±0.5 | 0.36±0.02 | ≤7.0 | 0.77±0.10 | 100 |
| Φ15 | 15.5±0.6 | 0.36±0.02 | ≤7.5 | 0.77±0.10 | 100 |
| Φ16 | 16.5±0.6 | 0.36±0.02 | ≤8.0 | 0.77±0.10 | 100 |
| Φ17 | 17.5±0.6 | 0.36±0.02 | ≤8.5 | 0.77±0.10 | 100 |
| Φ18 | 18.7±0.7 | 0.40±0.02 | ≤9.0 | 0.85±0.15 | 100 |
| Φ20 | 20.6±0.7 | 0.40±0.02 | ≤10. | 0.85±0.15 | 100 |
| Φ22 | 22.7±0.7 | 0.46±0.02 | ≤11.0 | 0.92±0.15 | 100 |
| Φ25 | 25.5±0.7 | 0.46±0.02 | ≤12.5 | 0.92±0.15 | 50 |
| Φ28 | 29.2±0.7 | 0.46±0.02 | ≤14.0 | 0.92±0.15 | 50 |
| Φ30 | 31.0±0.7 | 0.46±0.02 | ≤15.0 | 1.02±0.15 | 50 |
| Φ35 | 36.0±0.7 | 0.50±0.02 | ≤17.5 | 1.02±0.15 | 50 |
| Φ40 | 41.0±0.7 | 0.50±0.02 | ≤20.0 | 1.02±0.15 | 50 |
| Φ45 | 46.0±0.7 | 0.50±0.02 | ≤22.5 | 1.02±0.20 | 25 |
| Φ50 | ≥60 | 0.60±0.15 | ≤31.0 | 1.30±.020 | 25 |
| Φ60 | ≥70 | 0.65±0.15 | ≤36.0 | 1.30±0.20 | 25 |
| Φ80 | ≥80 | 0.70±0.15 | ≤41.0 | 1.46±0.20 | 25 |
| Φ90 | ≥90 | 0.70±0.15 | ≤46.0 | 1.46±0.20 | 25 |
| Φ100 | ≥100 | 0.70±0.20 | ≤51.0 | 1.46±.020 | 25 |
| Max.f180 | 51.0±0.7 | 0.50±0.20 | ≤25.0 | 1.02±0.20 | 15 |

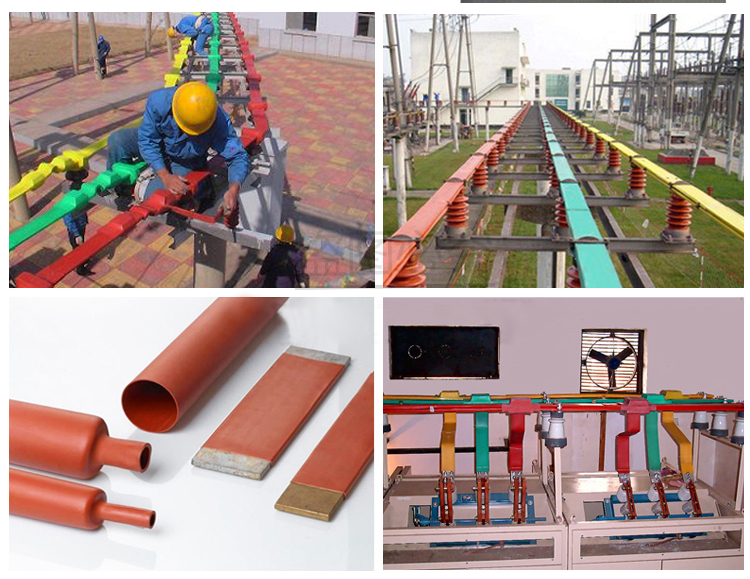

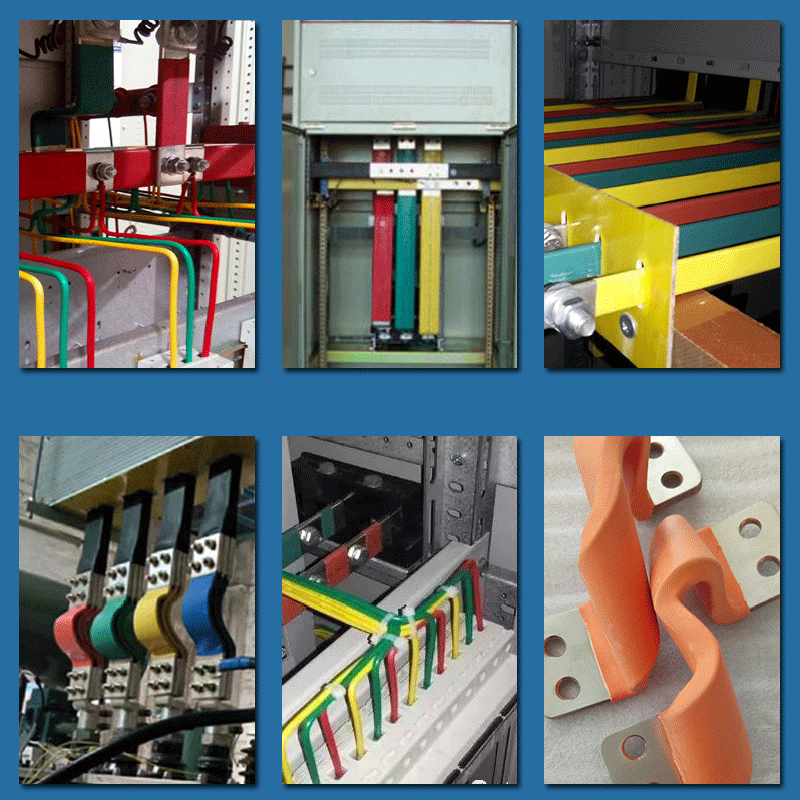

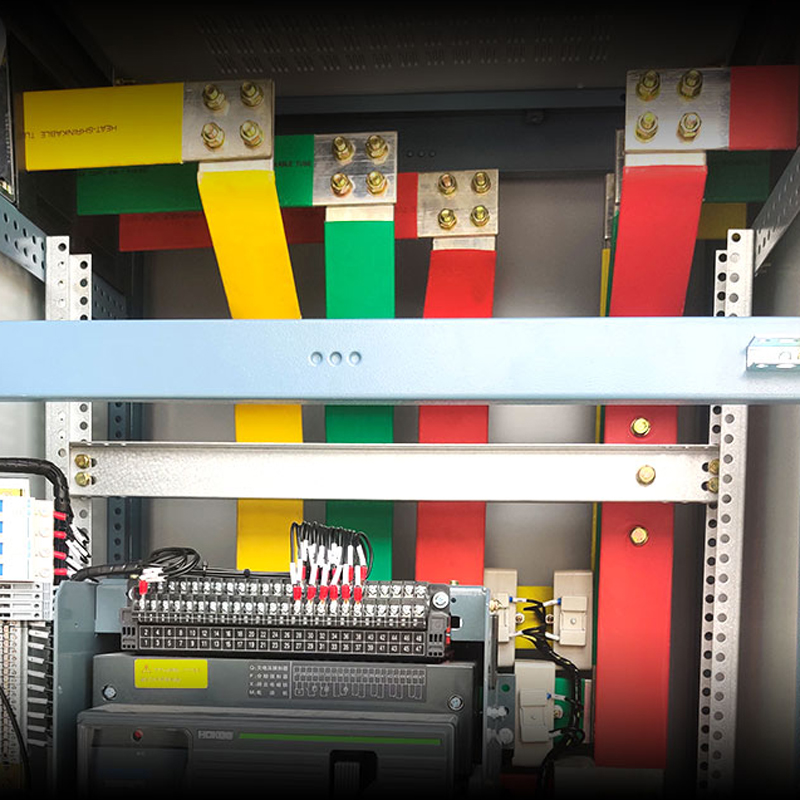

Application Cases

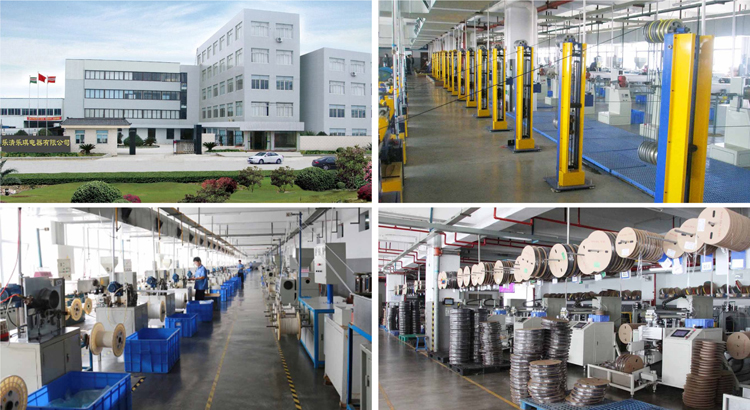

Company Information

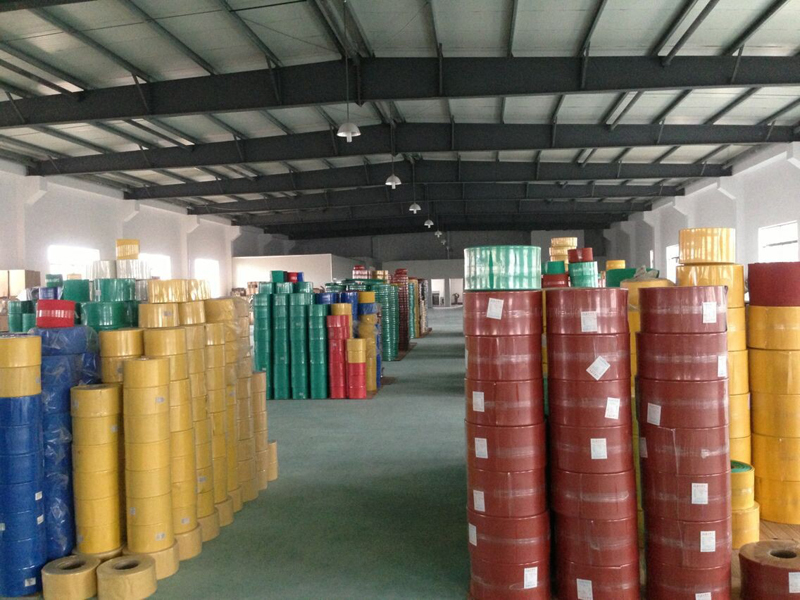

Stock

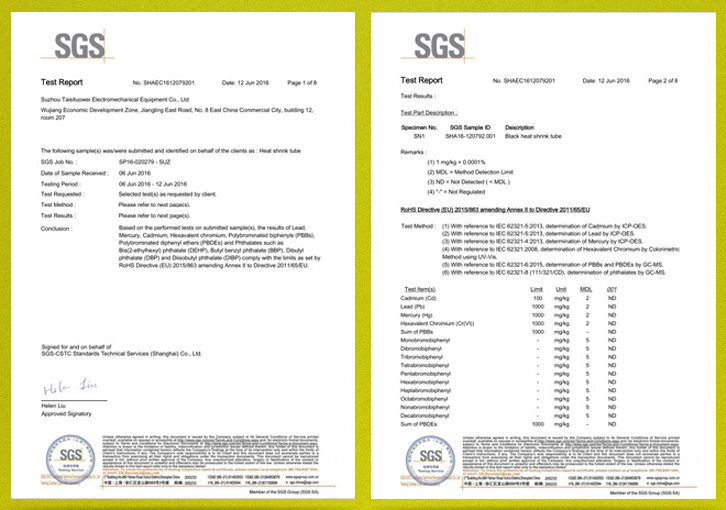

Certifications
