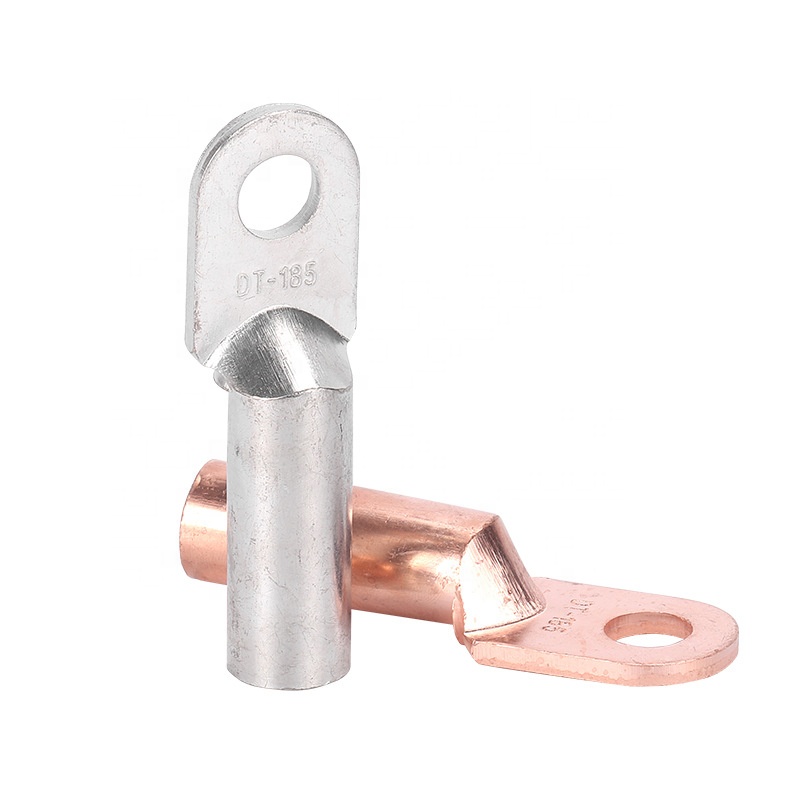

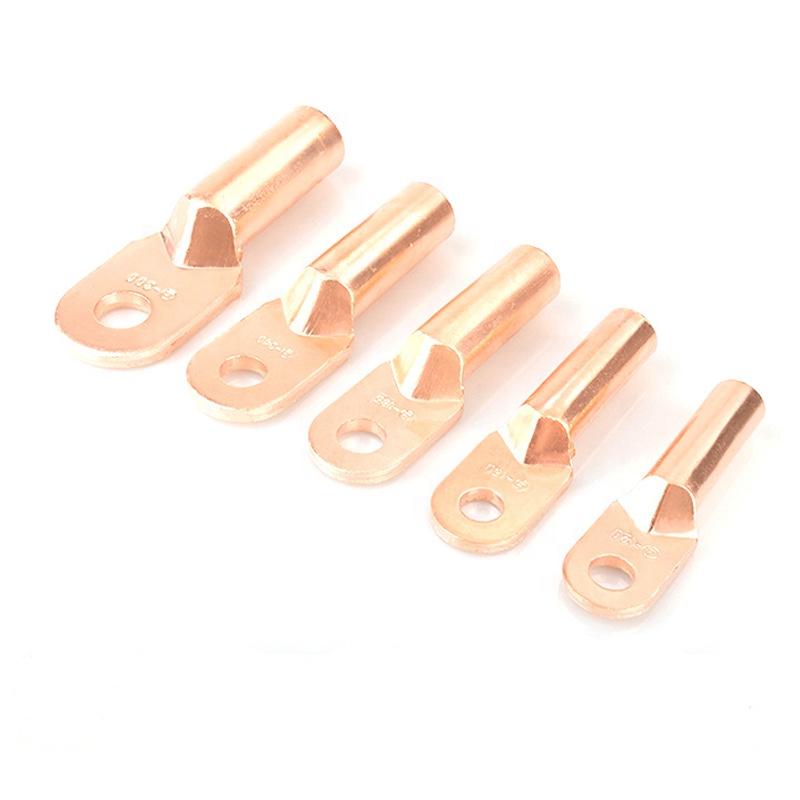

High Quality DT Copper Power Cable Terminal Lugs

Short Description:


Download as PDF

Product Detail

Product Tags

Overview
Quick Details
Model Number:   DT series
Type:   lug terminals
Place of Origin:   Zhejiang, China

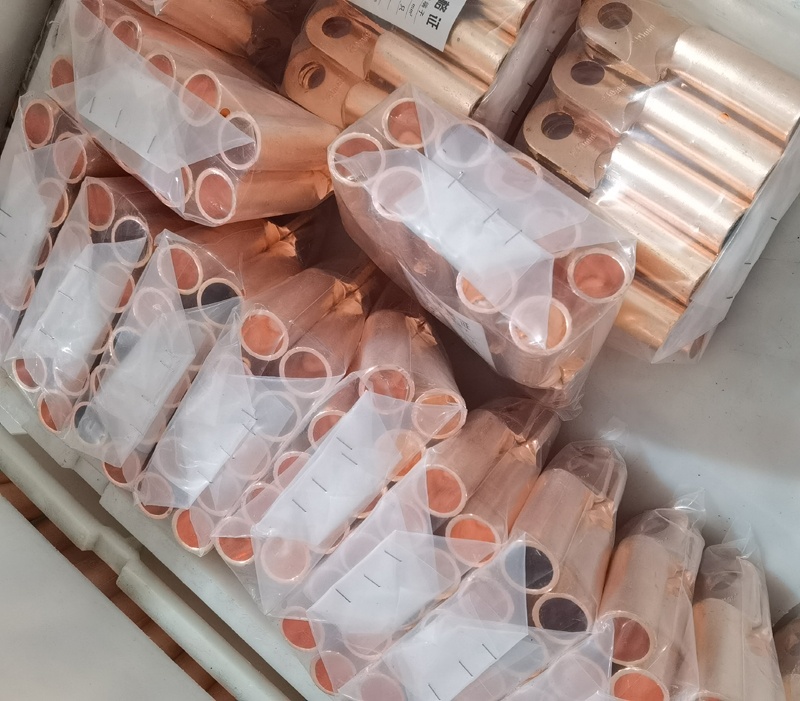

Packaging:   White inner box + export carton box
Description:   Copper Connecting Terminals
Production Name:   DT
Material:   T2 Copper Palm 99.95% Cu
Surface treatment:   Tinned or non-Tinned
Length(mm):   62-260
Process:   Cold Crimp
Application:   1kV-33kV medium and high voltage cable connections and terminals
Standard:   IEC61238,AS4325,UNI EN 573-3 : 2009,UNI EN 13600:2003
Hbc38f26eb5f84e1a80f3c9c67e26bfa3r

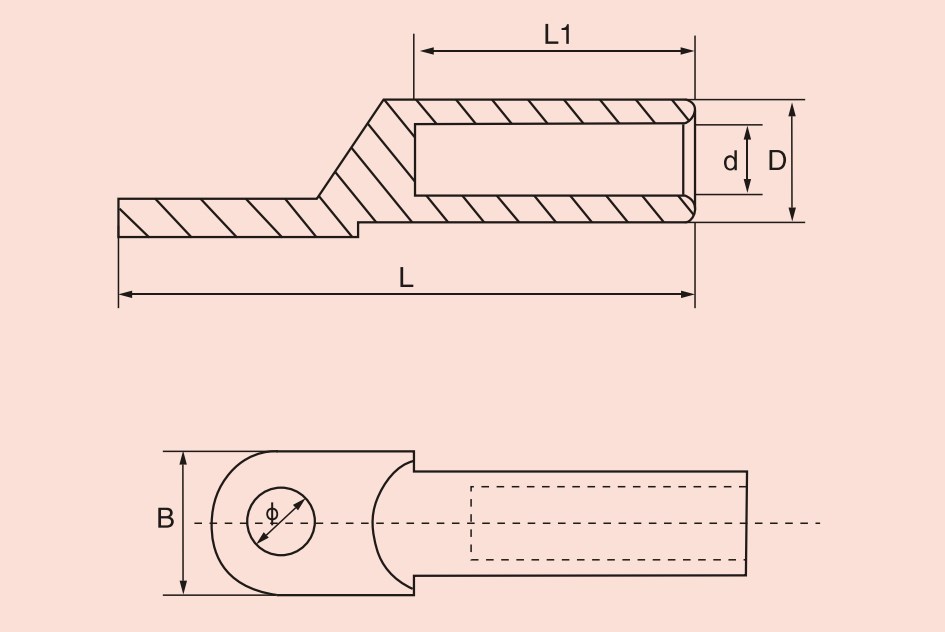

 Model
Φ
D
          d
          L
         L1
         B
DT -10
8.5
9
5.3
62
28
16
DT -16
8.5
10
6.5
68
30
16
DT -25
8.5
11
7
70
33
18
DT -35
10.5
12
8.5
80
36
20.5
DT -50
10.5
14
9.5
85
38
23
DT -70
12.5
16
11.5
95
43
26
DT -95
12.5
18
13.50
104
46
28
DT -120
14.5
20
15
112
49
30
DT -150
14.5
22
16.5
120
51
34
DT -185
16.5
25
18.5
125
55
37
DT -240
16.5
27
21
136
60
40
DT -300
18
31
23.5
155
66
50
DT -400
21
34
26.5
170
75
50
DT -500
21
38
29
190
75
60
DT -630
21
45
35
220
85
80
DT -800
21
50
38
260
85
100



Specification
1.DT Copper Bar Cable tube terminal,connector terminal,copper terminal,crimp terminal,cable accessories terminal,electric
terminal.
2.Application: products are suitable for the conjunction of wires,cables in the distribution equipment and the electrical
equipment. aluminium cable lugs are pressed with aluminium bar(L3),Copper cable lugs with copper bar(T2);
3.Connecting terminals are suitable for the conjunction of wires,cable in the distribution equipment and the electrical equipment.
