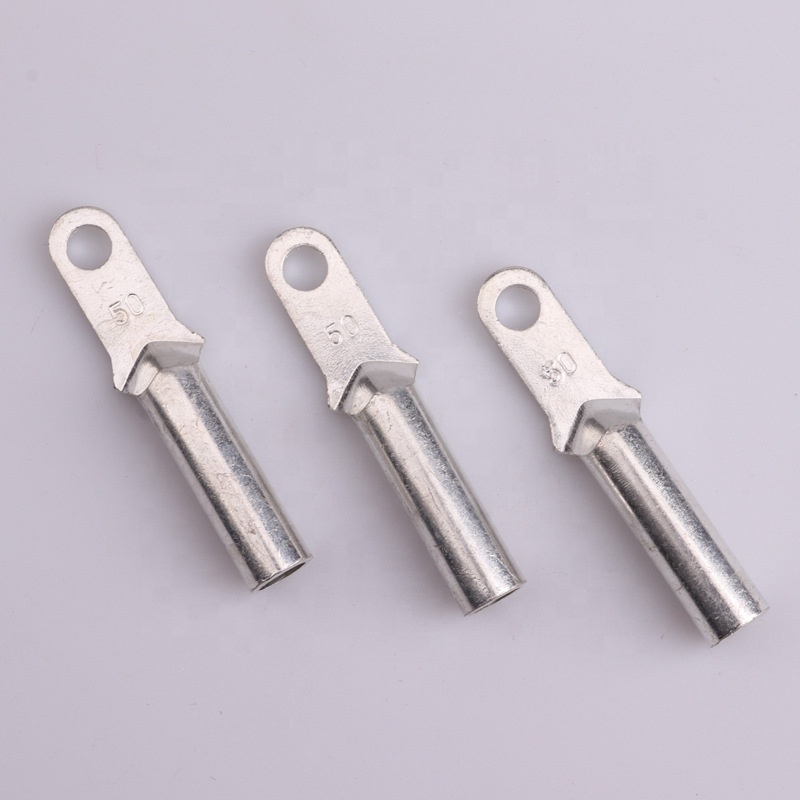

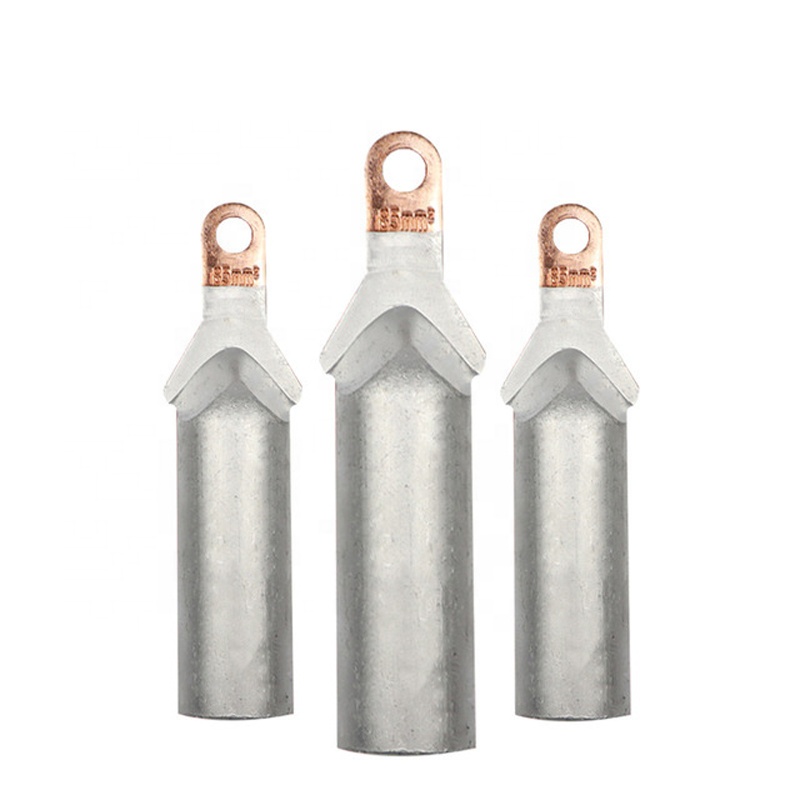

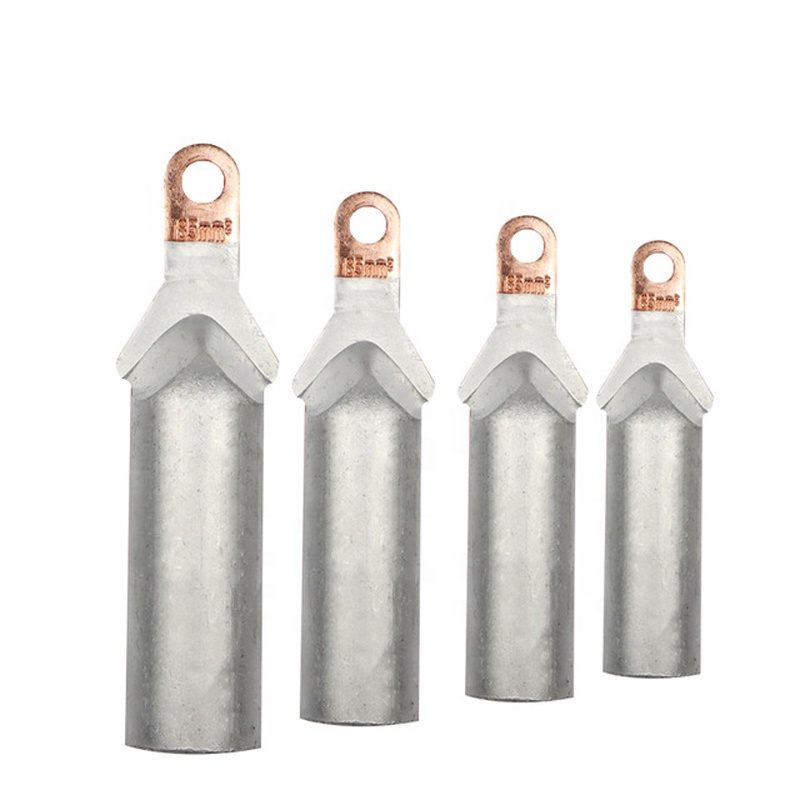

China manufacture IEC61238-1 DTL Aluminium copper terminal bimetal cable lug bimetallic connectors
Overview
Quick Details
- Model Number: DTL-2 series
- Type: lug terminals
- Place of Origin: Zhejiang, China
- Packaging: White inner box + export carton box
- Description: Copper Connecting Terminals
- Production Name: DTL-2
- Material: Copper Palm 99.95% Cu /Aluminium Sleeve 99.5% Alu
- Surface treatment: Tin plated
- Length(mm): 74-133.50
- Process: Cold Crimp
- Joining Method: Friction Welding
- Tensile Strength: 110Mpa
- Application: 1kV-33kV medium and high voltage cable connections and terminals
- Standard: IEC61238,AS4325,UNI EN 573-3 : 2009,UNI EN 13600:2003
-

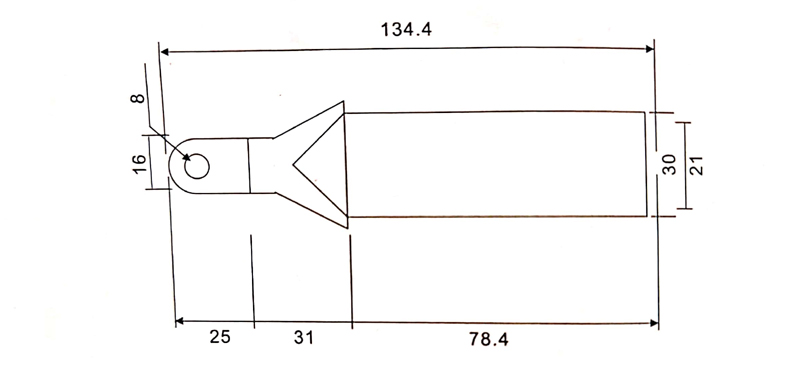

ModelPlate WidthHoleLengthPlate thicknessSmall head-DT -25168742.80Small head-DT -3516883.502.80Small head-DT -5016889.803.10Small head-DT -70168933.80Small head-DT -95168994.20Small head-DT -120168104.504.00Small head-DT -150168113.505.50Small head-DT -185168121.506.20Small head-DT -240168133.507.00SpecificationMatrial: Copper and Aluminium
Type: Lug, terminal, wire terminal
Certificate: ISO9000:2008
1.DTL-2 small head series of copper aluminum wiring terminals are suitable for transition connection of the circular aluminium
wires, hemicycle-sector aluminium wires, power supply cables in the distribution equipment and copper terminals of electrical equipment.
2.The material of alminium and copper is that of L3 and T2 respectively.
3.The technology of friction welding is wonderfully adopted.Therefore they have disinguishing features of strong weld
intensity,good nature in electrification,resistant galvanic corrosion and long service life.
