BTTZ mineral cable terminal

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Model Number: BTTZ TERMINALS series

Type: lug terminals

Place of Origin: Zhejiang, China

Packaging: White inner box + export carton box

Description: Copper Connecting Terminals

Production Name: BTTZ TERMINALS series

Material: copper

Functions: Fixing and connection for cables.

Operating Temperature: -40℃ to 100℃

Standard: IEC61238,AS4325,UNI EN 573-3 : 2009,UNI EN 13600:2003

Model

FIXED THREAD

SUITABLE CABLES

CABLE SPECIFICATION

LQ-1

M20*1.5

BTTZ/BTTVZ/BTTYZ

1x1~1x50 2x1~2x6

3x1~3x6 4x1 ~4x4

LQ-2

M25*1.5

BTTZ/BTTVZ/BTTYZ

1x70~1x95 2x10~2x16
3x10~3x16 4x6 ~4x10

LQ-3

M32*1.5

BTTZ/BTTVZ/BTTYZ

1x120~1x240 2x25~3x25
4x16 ~4x25

LQ-4

M38*1.5

BTTZ/BTTVZ/BTTYZ

1x300; 1x400

Specification

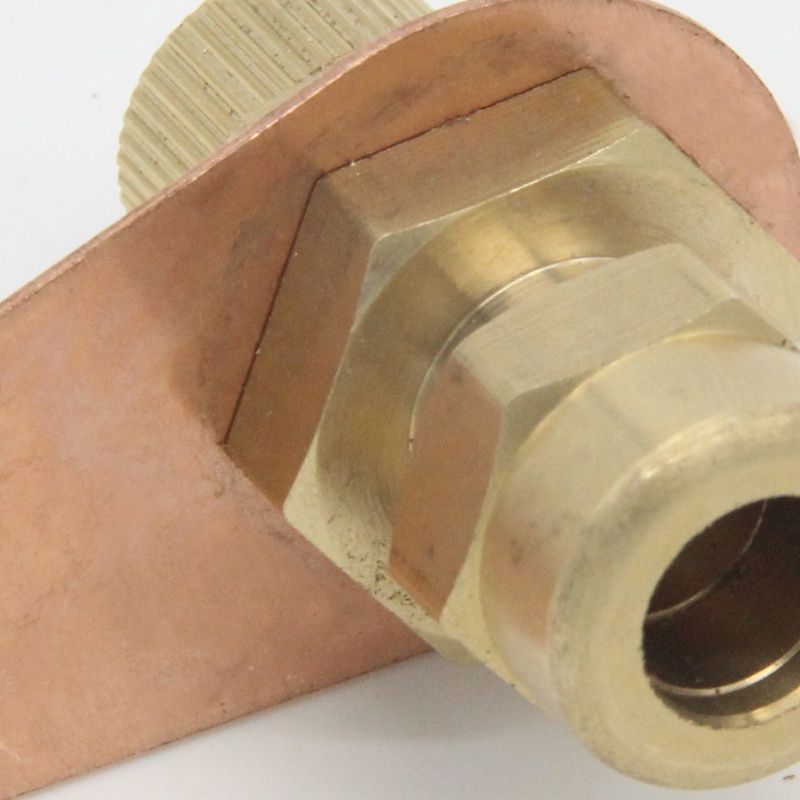

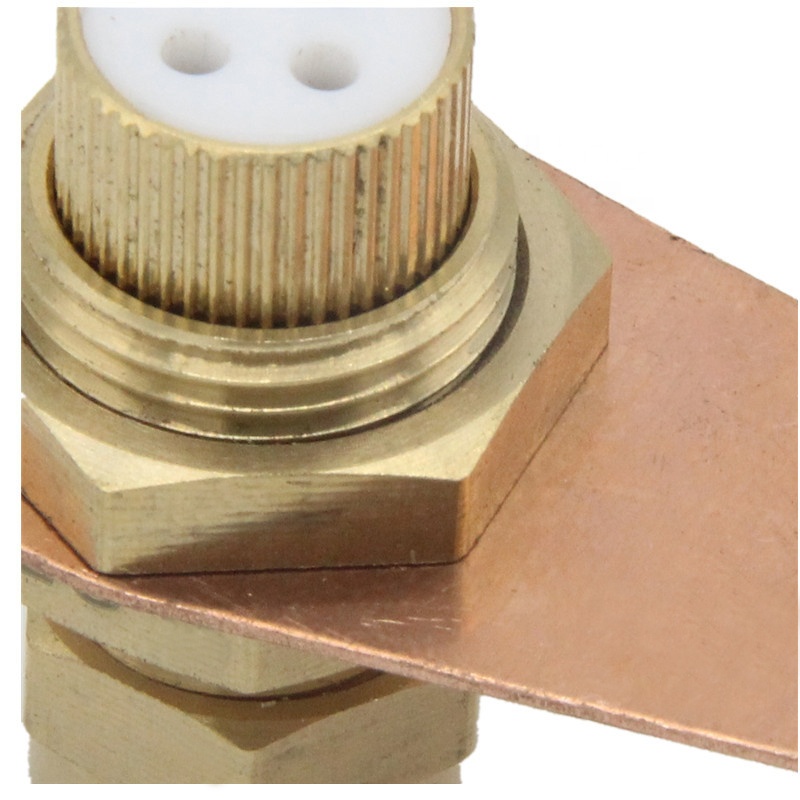

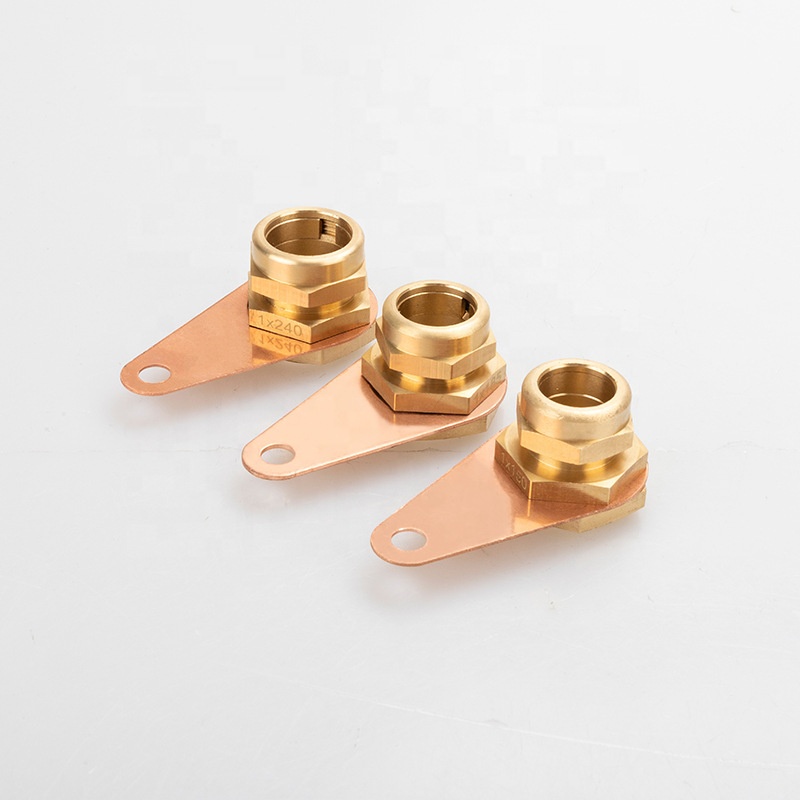

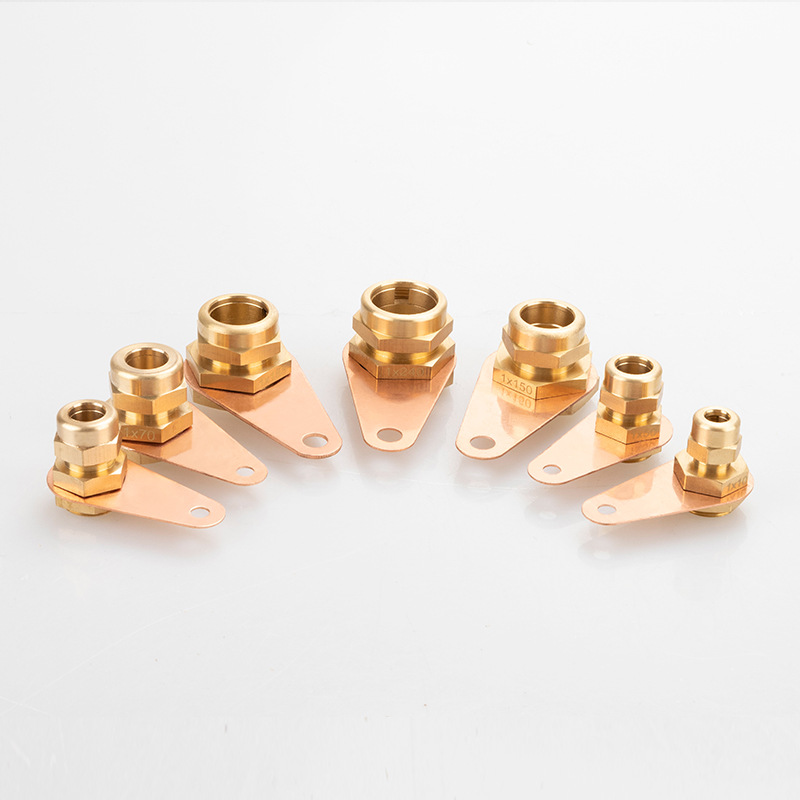

Mineral insulated cables terminal

Mineral insulated cable terminal installed at the end of mineral insulated cables.
