Good Anti-Pollution 66kv Composite Cross-Arm Insulator FSW-66/10
Overview
Quick Details
- Place of Origin: Zhejiang, China
- Brand Name: LEQI
- Model Number: FSW-66/10
- Type: Insulator, Insulated Sleeving
- Material: Silicone
- Application: High Voltage
- Rated Voltage: 66KV
- Tensile Strength: 10
- Product name: Composite Cross Arm Insulator FSW-66/10
- Rated voltage: 66 KV
- Rated frequency: 50Hz
- Usage: Electrical Insulation Protection
- Color: red/grey
- Keywords: insulator
- Feature: High Strength
- Certification: ISO 9001

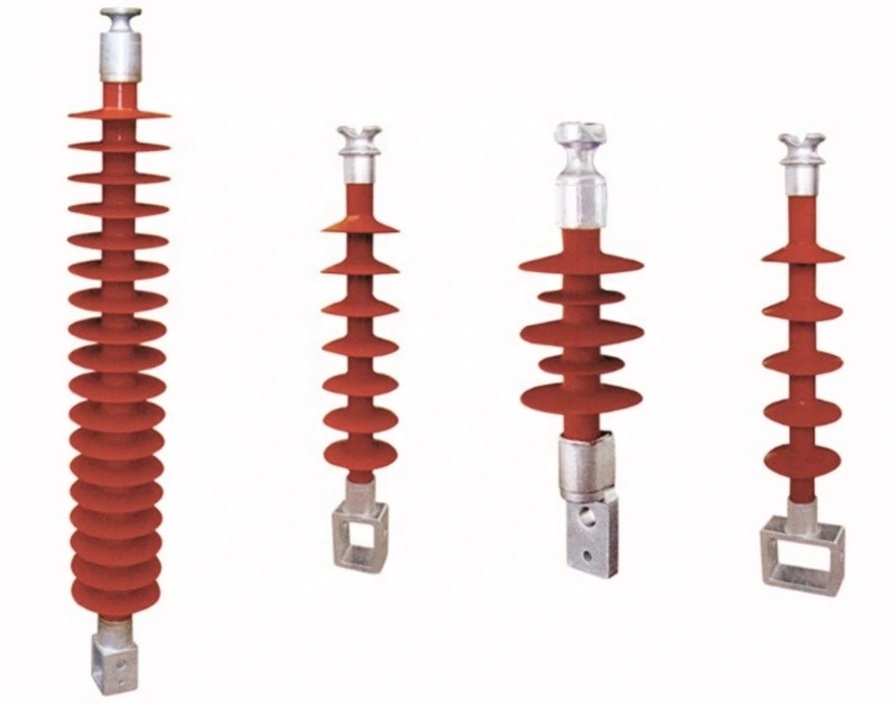

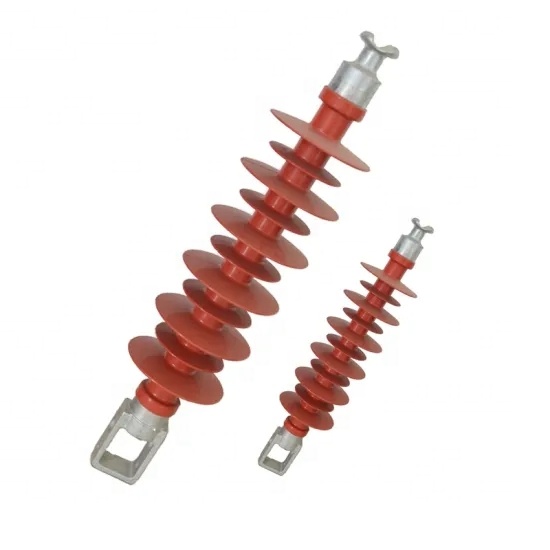

Composite Cross-arm Insulator① Shed connected with core by integral forming
② Metal end fittings, core and sheds connected by new crimping process
③ The thickness of housing > 3mm, uniform thickness, confirm to IEC Standard
④ Acid resistant, high temperature resistant of epoxy fiberglass core
⑤ The material of metal end fittings is used with hot galvanization and technology of rare earth aluminum coating to avoid coating
shedding when crimping, prolonging the service life of the product.
shedding when crimping, prolonging the service life of the product.
|
Model
|
Rated voltage (KV)
|
Rated mechanical bending load (KN)
|
Structural height
(mm) |
Insulation distance
(mm)
|
Minimum nominal creepage distance
(mm) |
Shed diameter (mm)
|
Lightning impulse voltage (KV)
|
1 min wet
Power frequency withstand voltage (KV) |
|
|
FS-10/5
|
10
|
5
|
280
|
130
|
300
|
85
|
75
|
42
|
|
|
FS-15/6
|
15
|
6
|
400
|
245
|
520
|
80
|
75
|
42
|
|
|
FSW-35/5
|
35
|
5
|
625
|
480
|
1400
|
145/115
|
265
|
95
|
|
|
FS2-35/5
|
35
|
5
|
660
|
480
|
1120
|
142
|
265
|
95
|
|
|
FSW-66/10
|
66
|
10
|
790
|
650
|
1920
|
160/140
|
325
|
140
|
|
|
FSW-110/10
|
110
|
10
|
1260
|
1060
|
3360
|
215/185
|
550
|
230
|
|
|
FSW-220/5
|
220
|
5
|
2165
|
1920
|
5510
|
160/140
|
1050
|
395
|
|
|
FSW-110/6
|
110
|
6
|
1220
|
965
|
2860
|
160/140
|
550
|
230
|
|
Specification
Product Name: 66KV 10KN Composite cross-arm Insulator
Model: FSW-66/10
Manufacture and test Standard: IEC, ANSI, GB
Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings
