Distribution Line Polymer 11KV-220KV Composite Cross Arm Insulator
Overview
Quick Details
- Place of Origin: Zhejiang, China
- Brand Name: LEQI
- Model Number: FS
- Type: Insulator, Insulated Sleeving
- Material: Silicone
- Application: High Voltage
- Rated Voltage: 11-220KV
- Tensile Strength: 10
- Product name: Composite Cross Arm Insulator FS
- Rated voltage: 11-220 KV
- Rated frequency: 50Hz
- Usage: Electrical Insulation Protection
- Color: red/grey
- Keywords: insulator
- Feature: High Strength
- Certification: ISO 9001

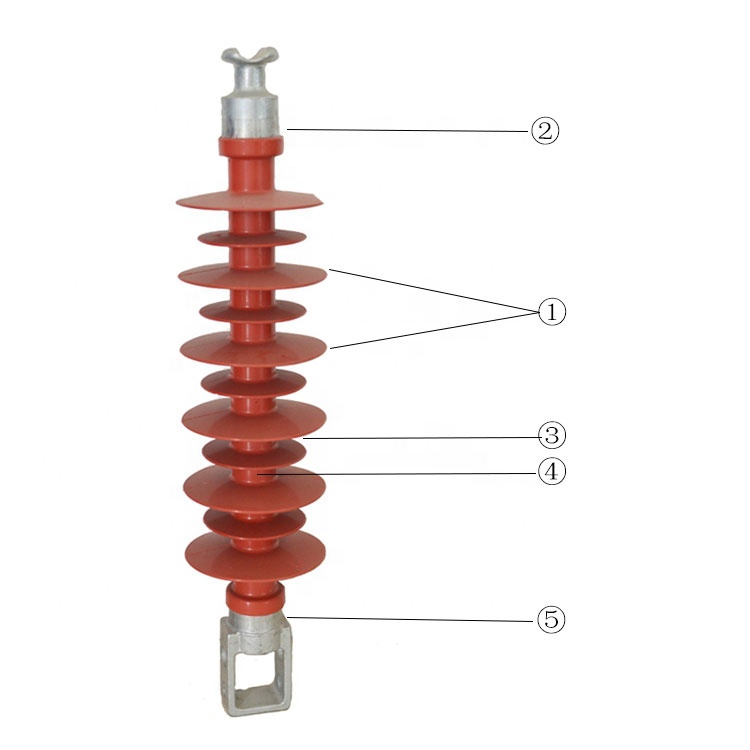

- Composite Cross-arm Insulator① Shed connected with core by integral forming
② Metal end fittings, core and sheds connected by new crimping process③ The thickness of housing > 3mm, uniform thickness, confirm to IEC Standard④ Acid resistant, high temperature resistant of epoxy fiberglass core⑤ The material of metal end fittings is used with hot galvanization and technology of rare earth aluminum coating to avoid coating
shedding when crimping, prolonging the service life of the product. -
ModelRated voltage (KV)Rated mechanical bending load (KN)Structural height
(mm)Insulation distance(mm)Minimum nominal creepage distance
(mm)Shed diameter (mm)Lightning impulse voltage (KV)1 min wet
Power frequency withstand voltage
(KV)FS-10/5105280130300857542FS-15/6156400245520807542FSW-35/53556254801400145/11526595FS2-35/5355660480112014226595FSW-66/1066107906501920160/140325140FSW-110/1011010126010603360215/185550230FSW-220/52205216519205510160/1401050395FSW-110/6110612209652860160/140550230SpecificationProduct Name: 11KV-220KV Composite cross-arm InsulatorModel: FS
Manufacture and test Standard: IEC, ANSI, GBMaterials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings
