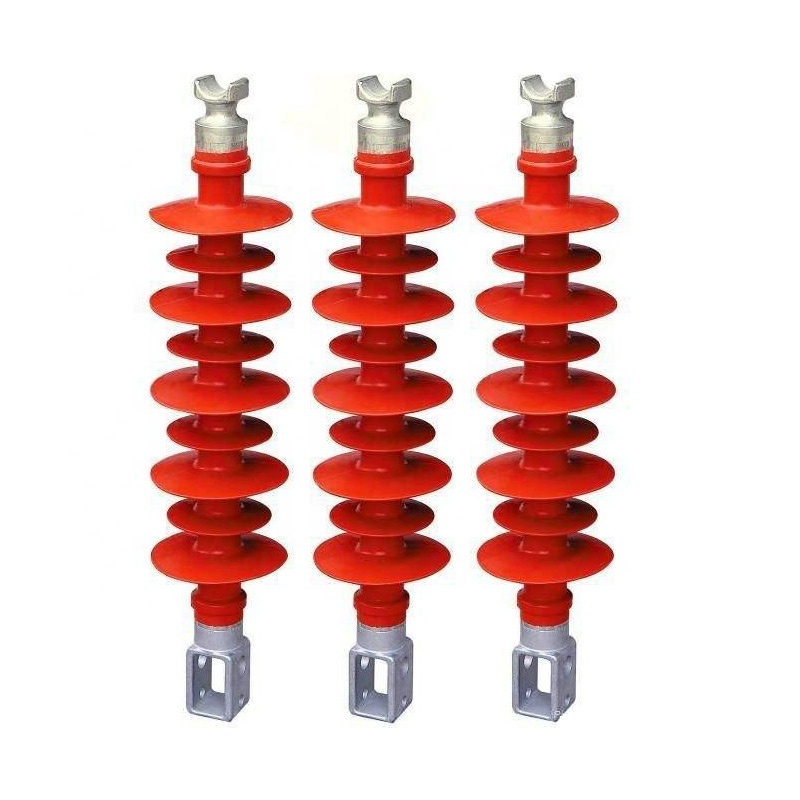

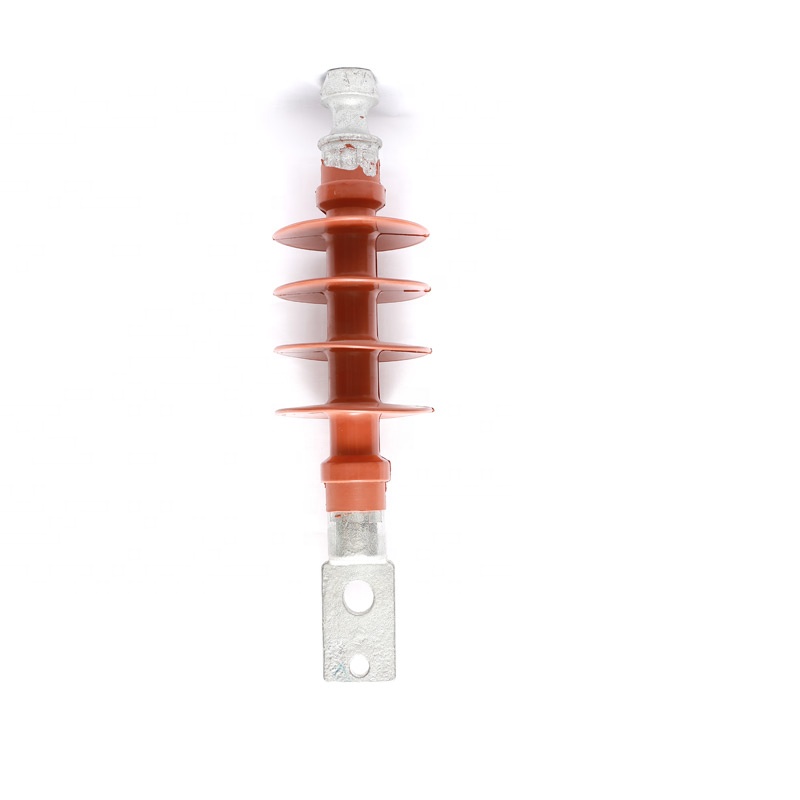

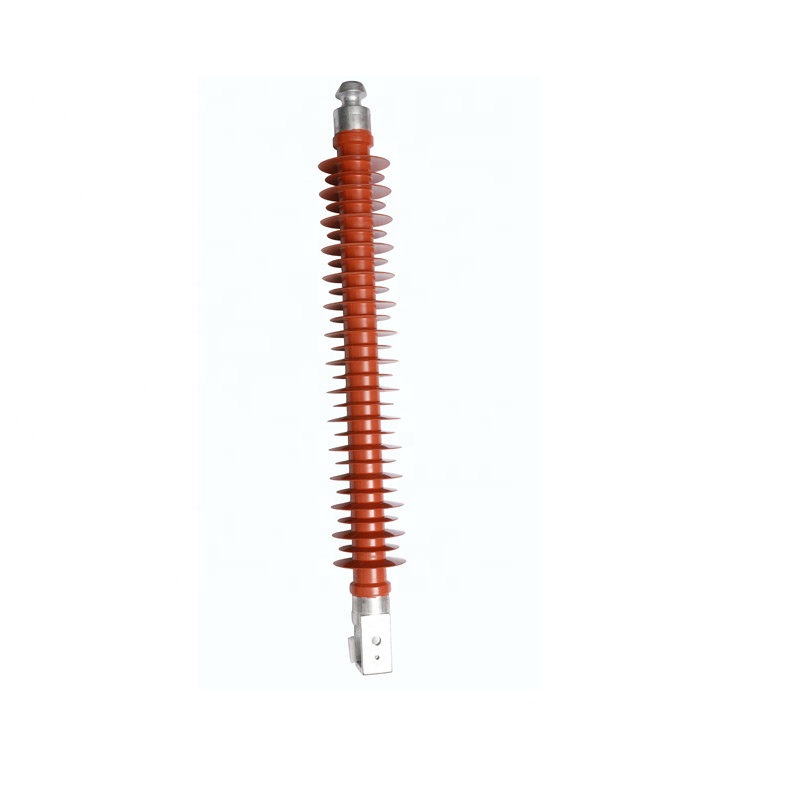

Composite Cross Arm Insulator 10kv FS-10/5
Overview
Quick Details
- Place of Origin: Zhejiang, China
- Brand Name: LEQI
- Model Number: FS-10/5
- Type: Insulator, Insulated Sleeving
- Material: Silicone
- Application: High Voltage
- Rated Voltage: 10KV
- Tensile Strength: 5
- Product name: Composite Cross Arm Insulator 10kv FS-10/5
- Rated voltage: 10 KV
- Rated frequency: 50Hz
- Usage: Electrical Insulation Protection
-
ModelRated voltage (KV)Rated mechanical bending load (KN)Structural height
(mm)Insulation distance(mm)Minimum nominal creepage distance
(mm)Shed diameter (mm)Lightning impulse voltage (KV)1 min wet
Power frequency withstand voltage
(KV)FS-10/5105280130300857542FS-15/6156400245520807542FSW-35/53556254801400145/11526595FS2-35/5355660480112014226595FSW-66/1066107906501920160/140325140FSW-110/1011010126010603360215/185550230FSW-220/52205216519205510160/1401050395FSW-110/6110612209652860160/140550230SpecificationProduct Name: 10kV 5KN Composite cross-arm InsulatorModel: FS-10/5
Manufacture and test Standard: IEC, ANSI, GBMaterials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings
