Mineral insulated cables terminals

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Model Number: BTTZ TERMINALS series

Type: lug terminals

Place of Origin: Zhejiang, China

Packaging: White inner box + export carton box

Description: Copper Connecting Terminals

Production Name: Mineral insulated cables terminals

Material: copper

Functions: Fixing and connection for cables.

Operating Temperature: -40℃ to 100℃

Standard: IEC61238,AS4325,UNI EN 573-3 : 2009,UNI EN 13600:2003

Model

A

B

H

D1

D2

2.5mm2

42.5

17

22

8

4

4mm2

42.5

17

22

8

4

6mm2

42.5

17

22

8

4

10mm2

42.5

17

22

8

4

16mm2

42.5

17

22

8

4

25mm2

42.5

17

22

8

6

35mm2

48

17

20

8

7.5

50mm2

48

17

20

8

8.5

70mm2

55

25

23

10

12

95mm2

55

25

23

10

12

120mm2

69

31

25

12

13

150mm2

69

31

25

12

14.5

185mm2

90

40

33

14

17

240mm2

90

40

33

14

19

300mm2

102

47

45

16

22

400mm2

102

47

45

16

24

Specification

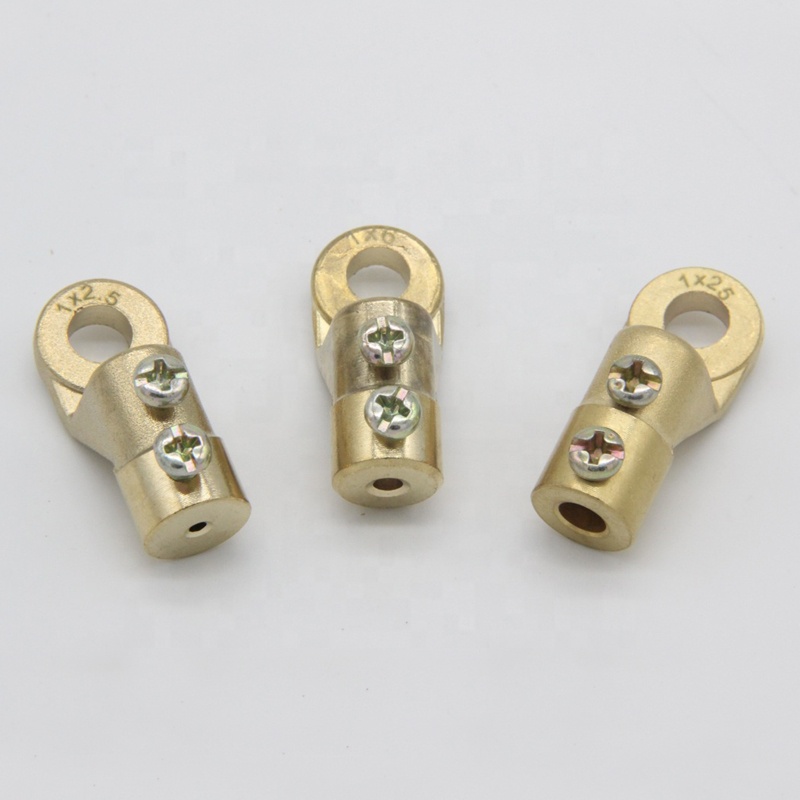

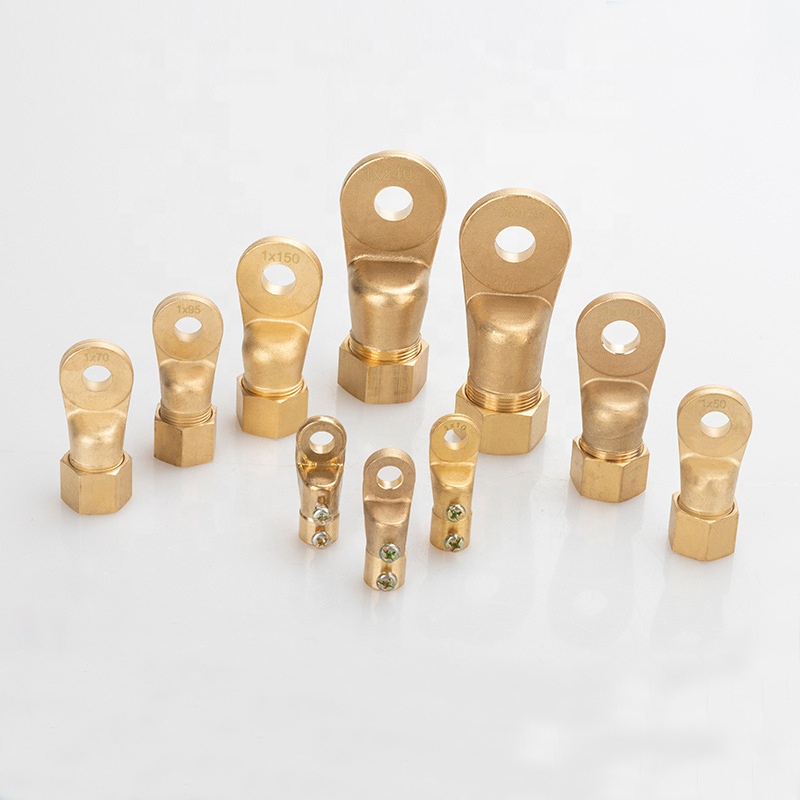

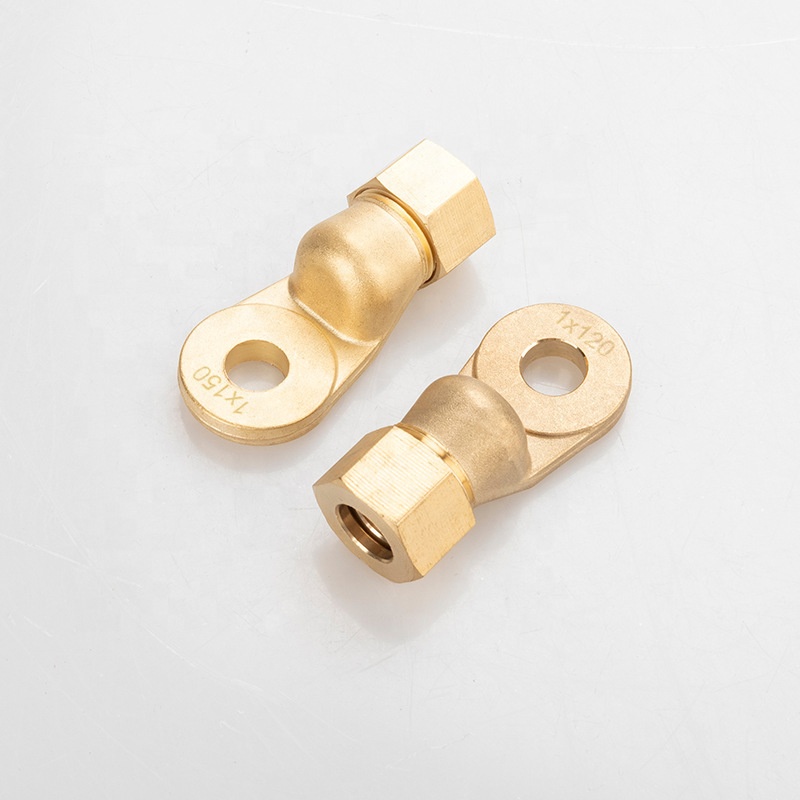

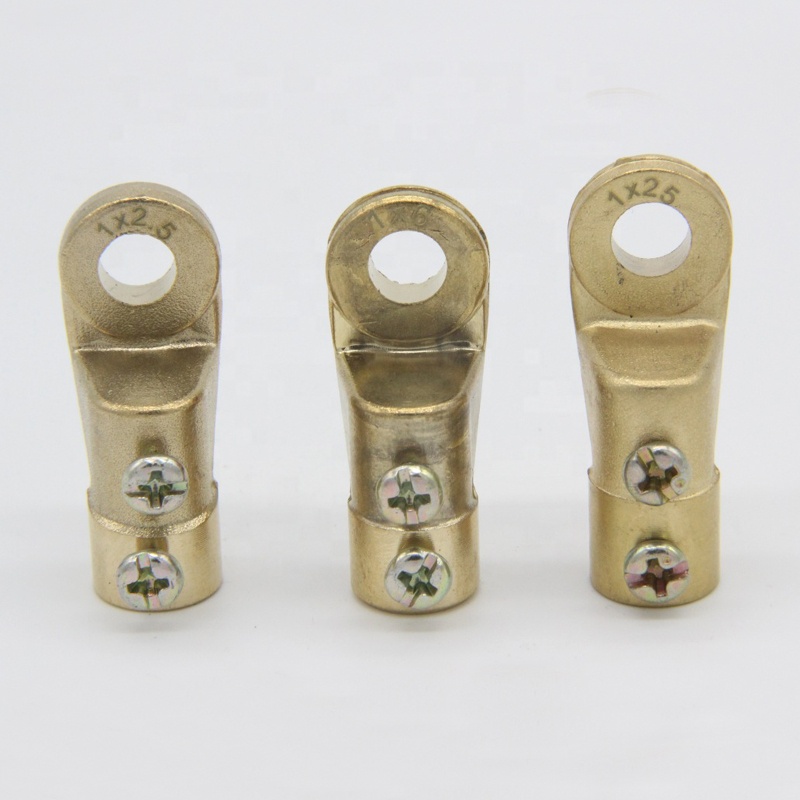

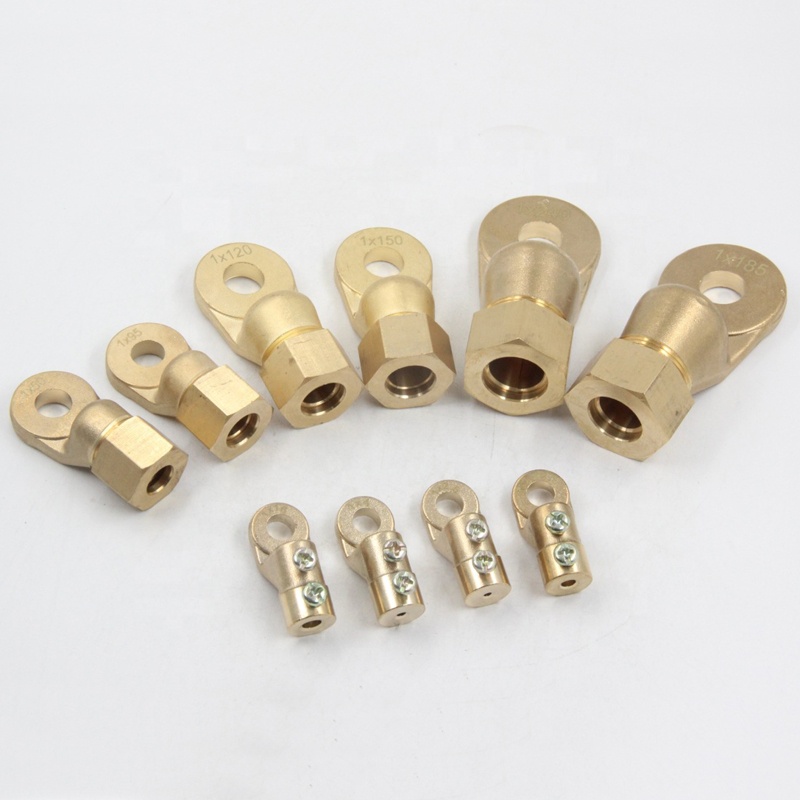

Terminals for mineral insulated cables

Mineral insulated cable special terminal for cable conductor and electrical box , cabinet box and other electrical equipments. Connection terminals are crimping type, press-fitting,screwing fastening etc...
