Lightning arrester rating Metal-oxide Surge arresters
|
Model
|
Rated voltage (KV)（rms）
|
Continuous
operating voltage （kV)（rms） |
Steep
current
residual
voltage
(kV≤)
|
30/60Switching
current
residual
voltage
(kV≤)
|
8/20
Lightning
current
residual
voltage
(kV≤)
|
2000μs Rectangular
wave
current
impulse(A)
|
4/10Current
withstand
discharge
capacity
(kA)
|
|
|
YH5W-3
|
3
|
2.55
|
9.5
|
7.7
|
9
|
100
|
65
|
|
|
YH5W-6
|
6
|
5.1
|
19
|
15.4
|
18
|
100
|
65
|
|
|
YH5W-9
|
9
|
7.65
|
28.5
|
23.1
|
27
|
100
|
65
|
|
|
YH5W-10
|
10
|
8.3
|
36
|
27
|
30
|
100
|
65
|
|
|
YH5W-11
|
11
|
9.5
|
38.5
|
30
|
33
|
100
|
65
|
|
|
YH5W-12
|
12
|
10.2
|
38
|
30.8
|
36
|
100
|
65
|
|
|
YH5W-15
|
15
|
12.7
|
47.5
|
38.5
|
45
|
100
|
65
|
|
|
YH5W-18
|
18
|
15.3
|
57.0
|
46.2
|
54
|
100
|
65
|
|
|
YH5W-21
|
21
|
17.0
|
66.5
|
53.9
|
63
|
100
|
65
|
|
|
YH5W-24
|
24
|
19.5
|
76.0
|
61.6
|
72
|
100
|
65
|
|
|
YH5W-27
|
27
|
21.9
|
85.5
|
69.3
|
81
|
100
|
65
|
|
|
YH5W-30
|
30
|
24.4
|
95.0
|
76.5
|
90
|
100
|
65
|
|
|
YH5W-33
|
33
|
26.8
|
104.0
|
84.7
|
99
|
100
|
65
|
|
|
YH5W-36
|
36
|
29.0
|
114.0
|
92.7
|
108
|
100
|
65
|
|
|
YH5W-42
|
42
|
34.1
|
132.3
|
100.1
|
126
|
100
|
65
|
|
|
YH10W-3
|
3
|
2.55
|
9.5
|
7.7
|
9
|
250
|
100
|
|
|
YH10W-6
|
6
|
5.1
|
19.0
|
15.4
|
18
|
250
|
100
|
|
|
YH10W-9
|
9
|
7.65
|
28.5
|
23.1
|
27
|
250
|
100
|
|
|
YH10W-10
|
10
|
8.3
|
36.0
|
27.0
|
30
|
250
|
100
|
|
|
YH10W-11
|
11
|
9.5
|
38.5
|
30.0
|
33
|
250
|
100
|
|
|
YH10W-12
|
12
|
10.2
|
38.0
|
30..8
|
36
|
250
|
100
|
|
|
YH10W-15
|
15
|
12.7
|
47.5
|
38.5
|
45
|
250
|
100
|
|
|
YH10W-18
|
18
|
15.3
|
57.0
|
46.2
|
54
|
250
|
100
|
|
|
YH10W-21
|
21
|
17.0
|
66.5
|
53.9
|
63
|
250
|
100
|
|
|
YH10W-24
|
24
|
19.5
|
76.0
|
61.6
|
72
|
250
|
100
|
|
|
YH10W-27
|
27
|
21.9
|
85.5
|
69.3
|
81
|
250
|
100
|
|
|
YH10W-30
|
30
|
24.4
|
95.0
|
76.5
|
90
|
250
|
100
|
|
|
YH10W-33
|
33
|
26.8
|
104.0
|
84.7
|
99
|
250
|
100
|
|
|
YH10W-36
|
36
|
29.0
|
114.0
|
92.7
|
108
|
250
|
100
|
|
|
YH10W-42
|
42
|
34.1
|
133.0
|
100.0
|
126
|
250
|
100
|
|
|
YH10W-48
|
48
|
39.0
|
152.0
|
126.0
|
150
|
400
|
100
|
|
|
YH10W-54
|
54
|
43.0
|
171.0
|
139.0
|
162
|
400
|
100
|
|
|
YH10W-60
|
60
|
48.0
|
208.0
|
160.0
|
180
|
400
|
100
|
|
|
YH10W-66
|
66
|
53.4
|
230.0
|
172.0
|
198
|
400
|
100
|
|
Specification

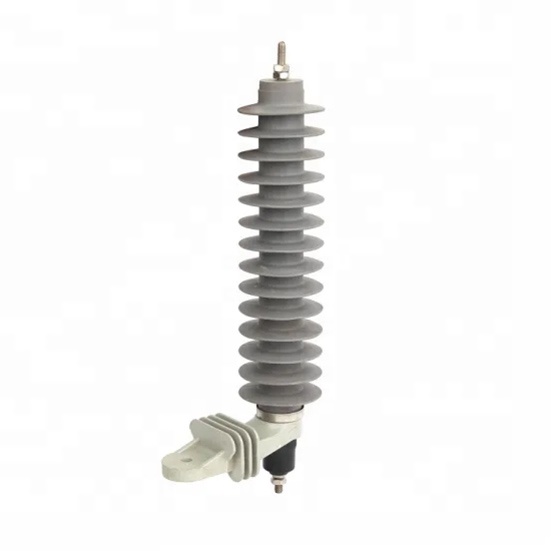

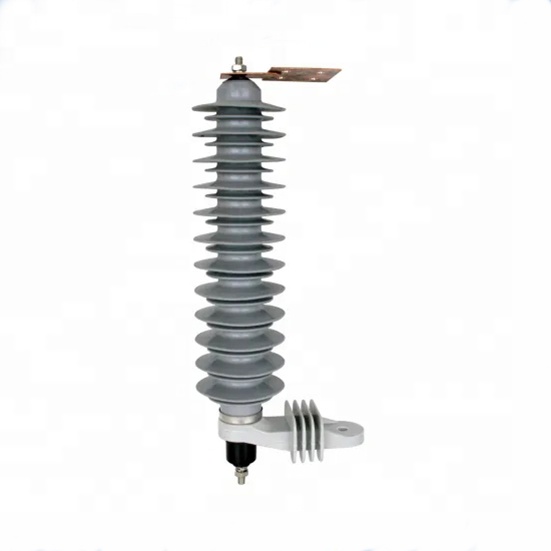

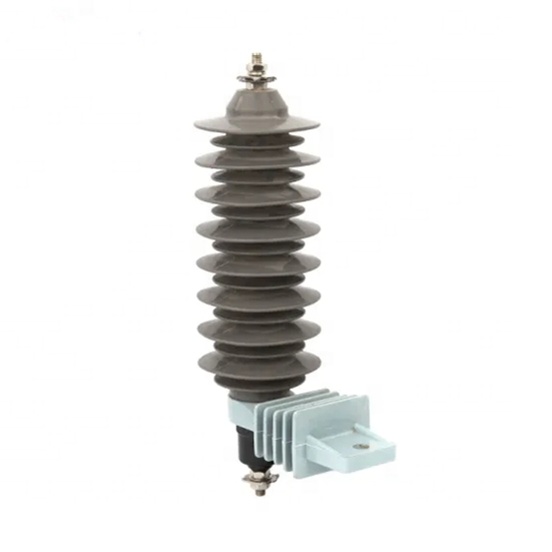

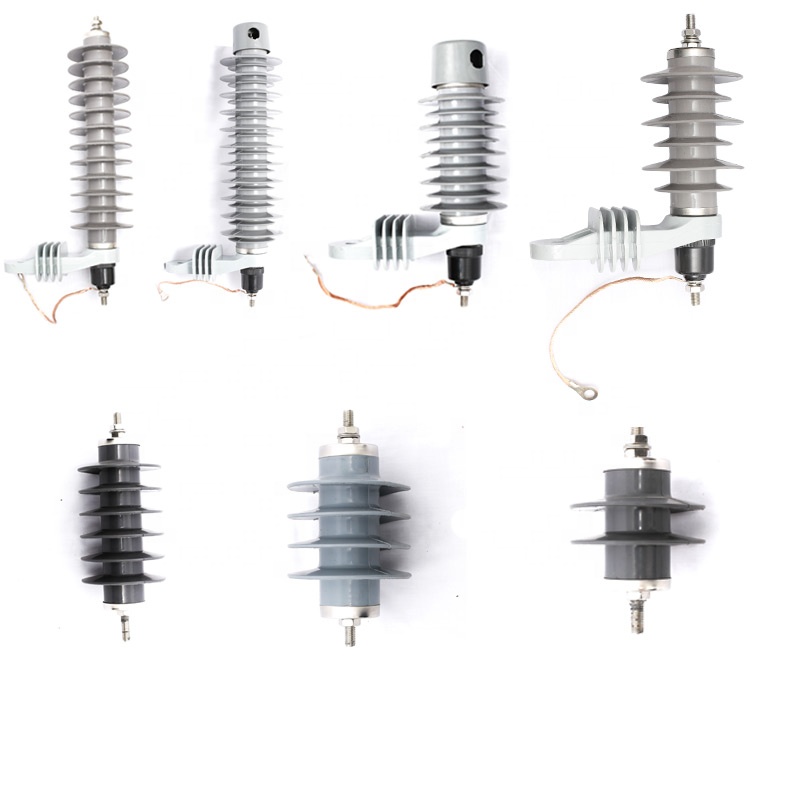

I. General Metal oxide arresters are currently the most advanced protective electrical appliances for limiting over voltages. They are widely used in power generation, transmission and transformation, and power distribution systems to protect the insulation of electrical equipment from overvoltage damage. The organic enclosure metal oxide arrester is a scientific research result combining organic insulating materials and the technical advantages of the traditional porcelain-sheathed metal oxide arrester. It not only has the advantages of porcelain-sheathed metal oxide arresters, but also has good electrical insulation properties and dielectric High strength, anti-leakage, anti-electric corrosion, heat resistance, cold resistance, aging resistance, explosion-proof, water repellency, good sealing performance and other advantages.
