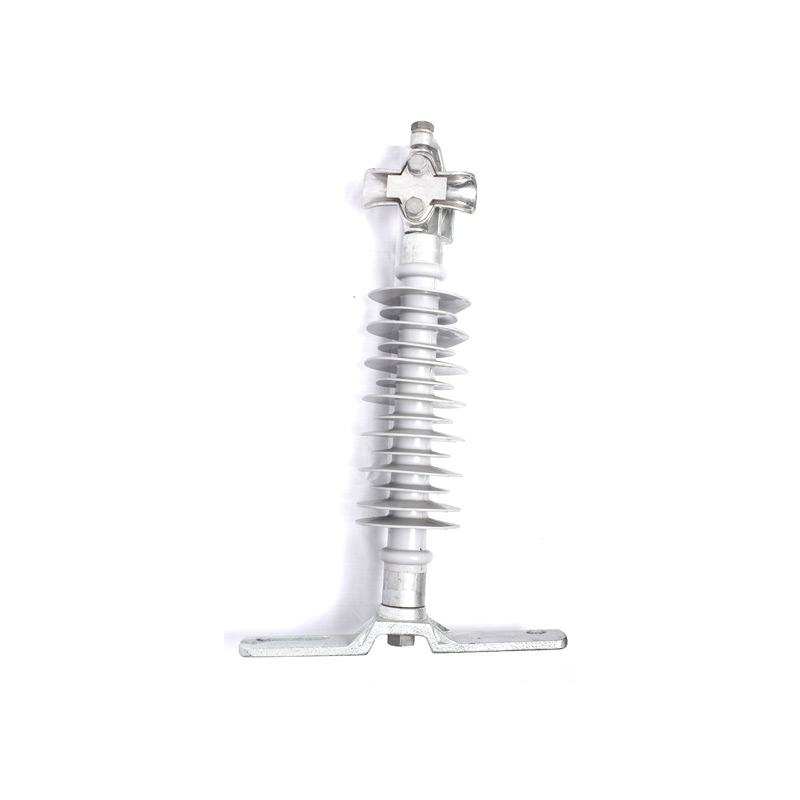

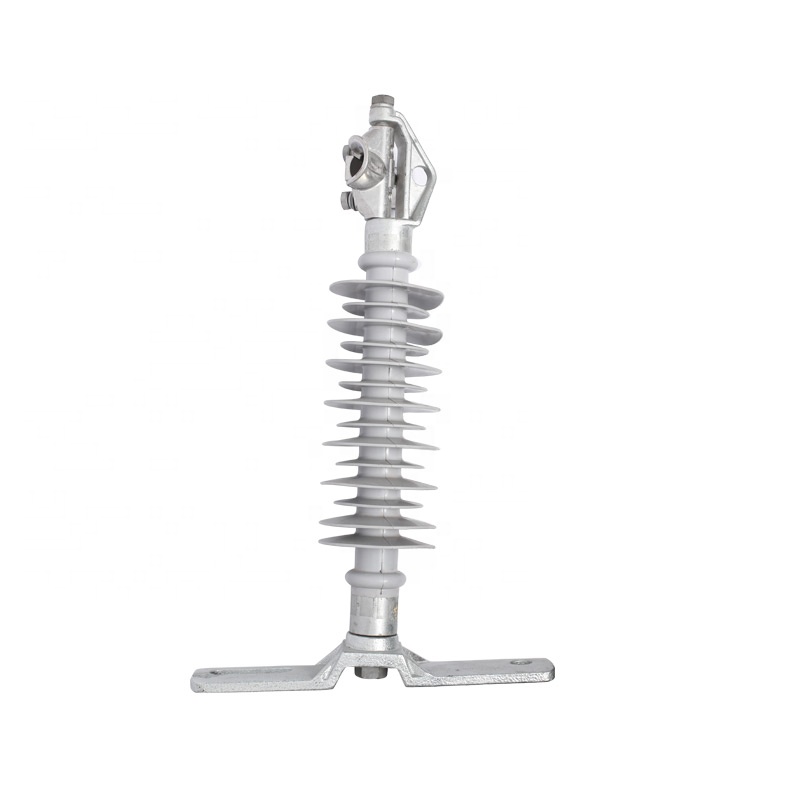

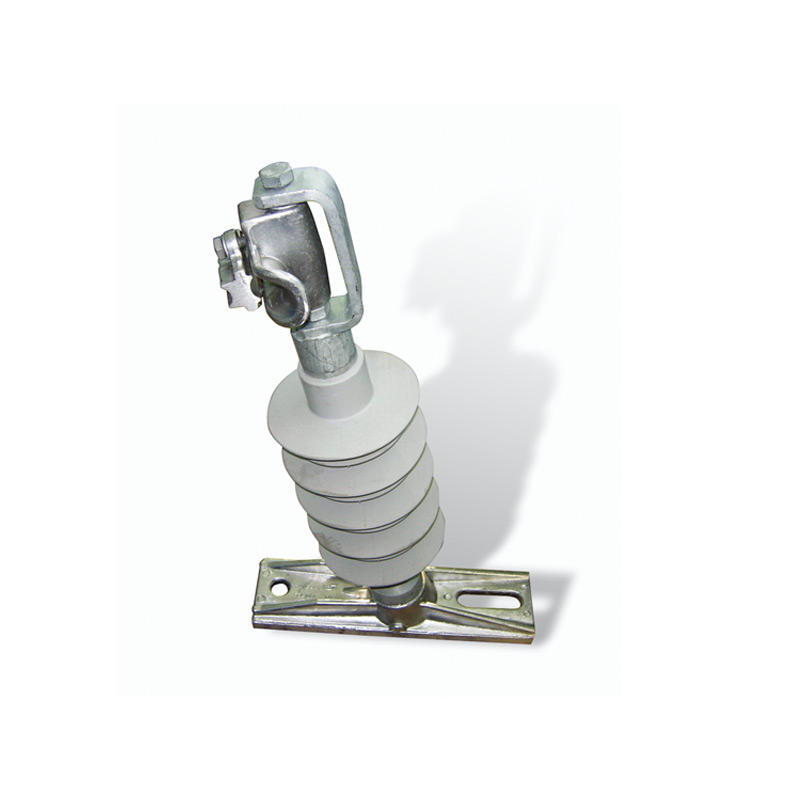

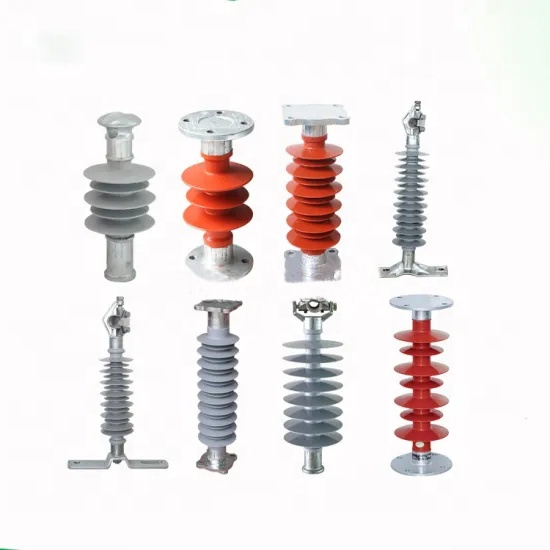

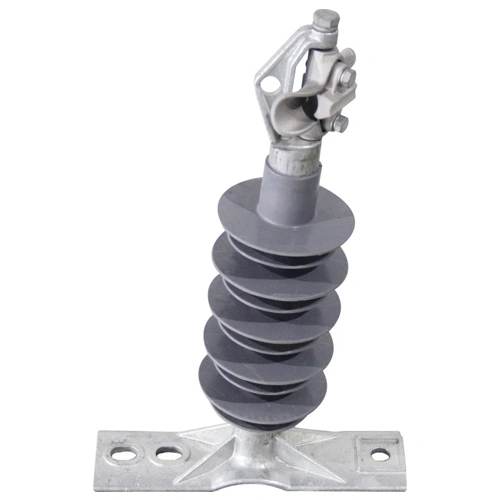

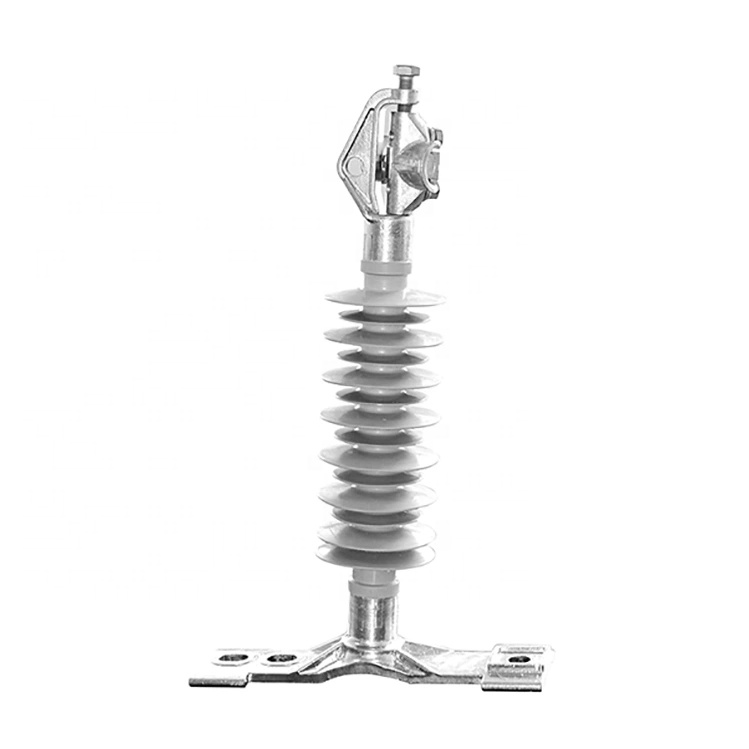

High Strength 11-69kv Line Post Silicon Composite Polymer Insulator
Overview
Quick Details
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
LEQI
- Model Number:
-
FZS
- Type:
-
Insulator, Insulated Sleeving
- Material:
-
Silicone, Composite polymer
- Application:
-
High Voltage
- Rated Voltage:
-
110-220KV
- Tensile Strength:
-
100/160/210
- Product name:
-
Composite post Insulator
- Rated voltage:
-
11-69 KV
- Rated frequency:
-
50Hz
- Usage:
-
Electrical Insulation Protection
- Color:
-
red/grey/customized
- Keywords:
-
insulator
- Feature:
-
High mechanical Strength; heat resistant, light weight and etc
- Certification:
-
ISO 9001
Product Description
|
Model
|
Rated voltage (KV)
|
Rated mechanical bending load (KN)
|
Structural height
(mm) |
Insulation distance
(mm)
|
Minimum nominal creepage distance
(mm) |
Shed diameter (mm)
|
Lightning impulse voltage (KV)
|
1 min wet
Power frequency withstand voltage (KV) |
|
|
FZS-11/10
|
11
|
10
|
220
|
135
|
300
|
100/90
|
95
|
45
|
|
|
FZS-15/12.5
|
11
|
12.5
|
285
|
170
|
600
|
138/118
|
105
|
50
|
|
|
FZS-25/12.5
|
25
|
12.5
|
450
|
320
|
700
|
138
|
125
|
65
|
|
|
FZS-35/12.5
|
35
|
12.5
|
580
|
405
|
1650
|
150/120
|
265
|
135
|
|
|
FZS-69/12.5
|
69
|
12.5
|
780
|
630
|
1950
|
215/165
|
350
|
150
|
|
Specification
Product Name: 10-69KV Composite suspension InsulatorModel: FZS
Manufacture and test Standard: IEC, ANSI, GB
Manufacture and test Standard: IEC, ANSI, GB
Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings
