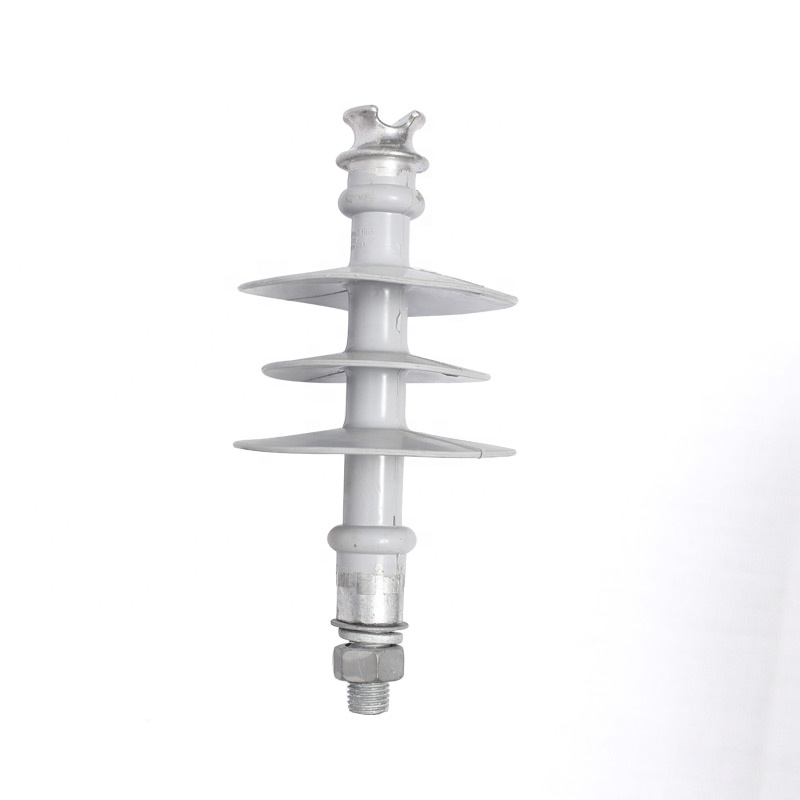

33KV 12.5kn Composite Silicon Rubber Pin Insulator
Overview
Quick Details
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
LEQI
- Model Number:
-
FPQ-33/12.5
- Type:
-
Insulator, Insulated Sleeving
- Material:
-
Silicone, Composite polymer
- Application:
-
High Voltage
- Rated Voltage:
-
33KV
- Tensile Strength:
-
10
- Product name:
-
Composite pin Insulator FPQ-33/12.5
- Rated voltage:
-
33 KV
- Rated frequency:
-
50Hz
- Usage:
-
Electrical Insulation Protection
- Color:
-
red/grey/customized
- Keywords:
-
insulator
- Feature:
-
High mechanical Strength; heat resistant, light weight and etc
- Certification:
-
ISO 9001
Product Description
|
Model
|
Rated voltage (KV)
|
Rated mechanical bending load (KN)
|
Structural height
(mm) |
Insulation distance
(mm)
|
Minimum nominal creepage distance
(mm) |
Shed diameter (mm)
|
Lightning impulse voltage (KV)
|
1 min wet
Power frequency withstand voltage (KV) |
|
|
FPQ-11/4
|
11
|
4
|
295
|
140
|
360
|
90/88
|
105
|
105
|
|
|
FPQ-11/5
|
11
|
5
|
280
|
180
|
380
|
90
|
105
|
105
|
|
|
FPQ-11/10
|
11
|
10
|
300
|
165
|
420
|
140/114
|
105
|
105
|
|
|
FPQ-11/12.5
|
11
|
12.5
|
320
|
195
|
450
|
110
|
95
|
95
|
|
|
FPQ-15/10
|
15
|
10
|
280
|
160
|
665
|
130/110
|
145
|
145
|
|
|
FPQ-24/8
|
24
|
8
|
315
|
200
|
450
|
120/100
|
145
|
145
|
|
|
FPQ-24/11
|
24
|
11
|
476
|
165
|
610
|
135/105
|
145
|
145
|
|
|
FPQ-33/8
|
33
|
8
|
425
|
320
|
1150
|
122/92
|
230
|
230
|
|
|
FPQ-33/10
|
33
|
10
|
406
|
280
|
940
|
122/92
|
200
|
200
|
|
|
FPQ-33/12
|
33
|
12
|
545
|
380
|
1485
|
200
|
250
|
250
|
|
|
FPQ-33/12.5
|
33
|
12.5
|
545
|
405
|
1650
|
265
|
265
|
265
|
|
Specification
Product Name: 33KV Composite PIN Insulator
Model: FPQ-33/12.5
Manufacture and test Standard: IEC, ANSI, GBMaterials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings
Model: FPQ-33/12.5
Manufacture and test Standard: IEC, ANSI, GBMaterials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings
