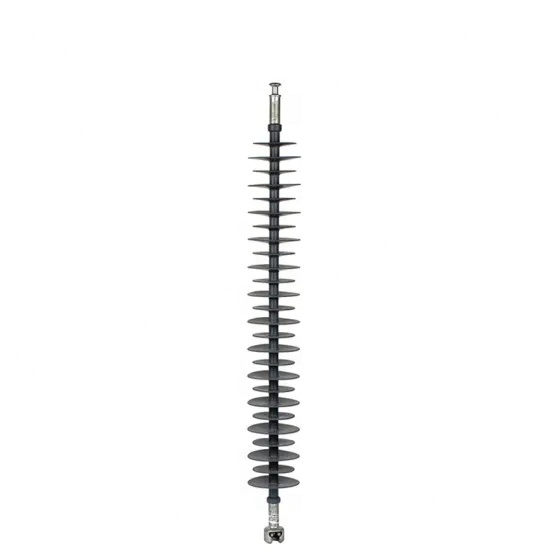

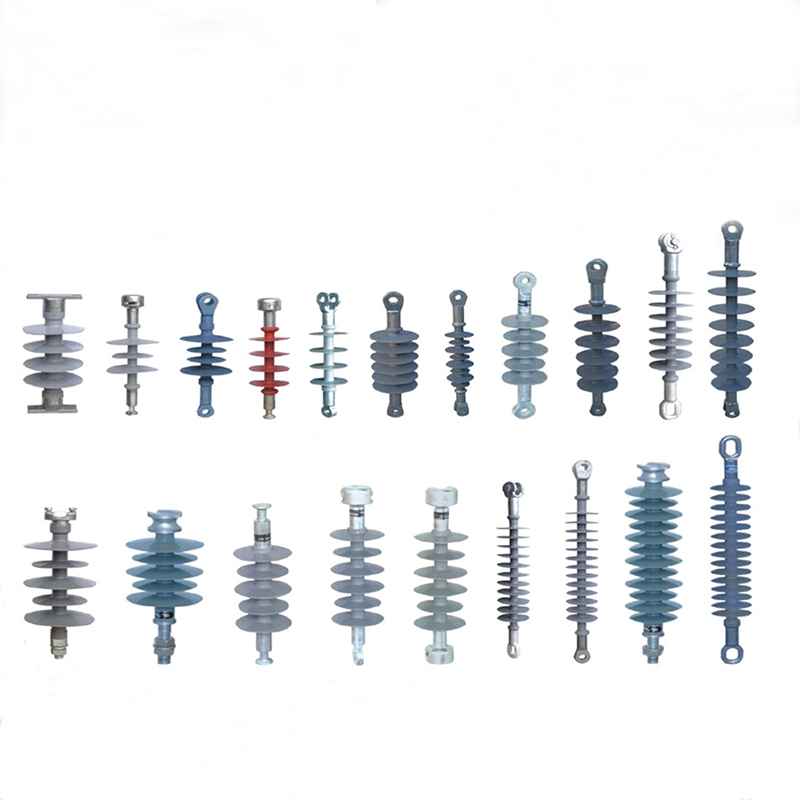

110-220KV 100/160/210KN polymer composite suspension insulators FXBW4
Overview
Quick Details
- Place of Origin:
-
Zhejiang, China
- Brand Name:
-
LEQI
- Model Number:
-
FXBW4
- Type:
-
Insulator, Insulated Sleeving
- Material:
-
Silicone, Composite polymer
- Application:
-
High Voltage
- Rated Voltage:
-
110-220KV
- Tensile Strength:
-
100/160/210
- Product name:
-
Composite suspension Insulator FXBW4
- Rated voltage:
-
35 KV
- Rated frequency:
-
50Hz
- Usage:
-
Electrical Insulation Protection
- Color:
-
red/grey/customized
- Keywords:
-
insulator
- Feature:
-
High mechanical Strength; heat resistant, light weight and etc
- Certification:
-
ISO 9001
Product Description

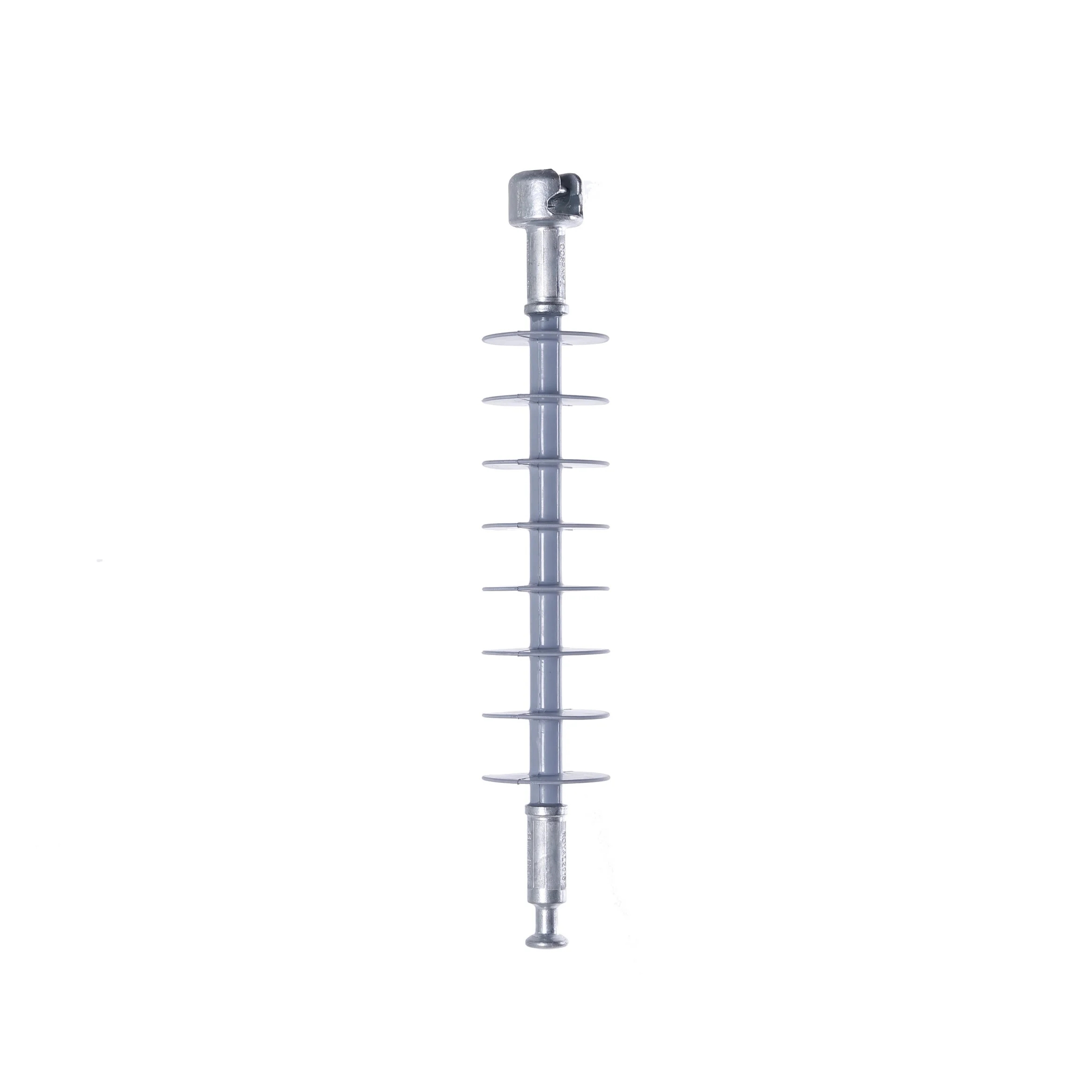

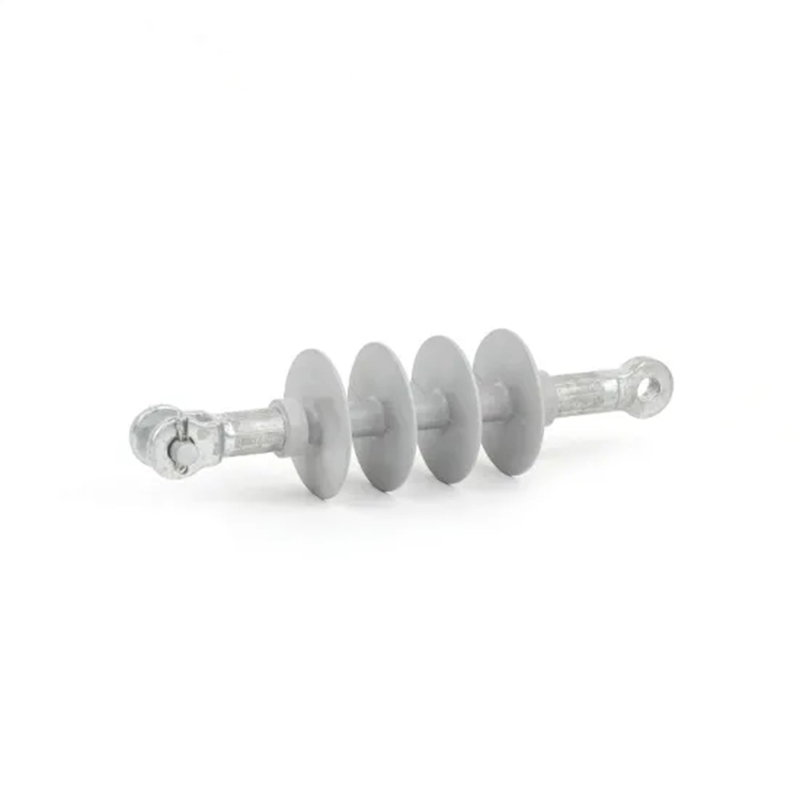

Composite Suspension Insulator——Socket Insulator① Shed connected with core by integral forming② Metal end fittings, core and sheds connected by new crimping process
③ The thickness of housing > 3mm, uniform thickness, confirm to IEC Standard
④ Acid resistant, high temperature resistant of epoxy fiberglass core
⑤ The material of metal end fittings is used with hot galvanization and technology of rare earth aluminum coating to avoid coating
shedding when crimping, prolonging the service life of the product.
③ The thickness of housing > 3mm, uniform thickness, confirm to IEC Standard
④ Acid resistant, high temperature resistant of epoxy fiberglass core
⑤ The material of metal end fittings is used with hot galvanization and technology of rare earth aluminum coating to avoid coating
shedding when crimping, prolonging the service life of the product.
|
Model
|
Rated voltage (KV)
|
Rated mechanical bending load (KN)
|
Structural height
(mm) |
Insulation distance
(mm)
|
Minimum nominal creepage distance
(mm) |
Shed diameter (mm)
|
Lightning impulse voltage (KV)
|
1 min wet
Power frequency withstand voltage (KV) |
|
|
FXBW4-6/70
|
6
|
70
|
270±5
|
80
|
260
|
148/118
|
60
|
25
|
|
|
FXBW4-10/70
|
10
|
70
|
310±5
|
175
|
425
|
125/95
|
95
|
42
|
|
|
FXBW4-10/100
|
10
|
100
|
367±5
|
220
|
460
|
125/95
|
95
|
42
|
|
|
FXBW4-35/70
|
35
|
70
|
670±5
|
490
|
1350
|
138/28
|
230
|
95
|
|
|
FXBW4-35/100
|
35
|
100
|
670±5
|
450
|
1320
|
148/114
|
230
|
95
|
|
|
FXBW4-66/70
|
66
|
70
|
870(940)±15
|
710
|
2248
|
148/118
|
410
|
185
|
|
|
FXBW4-66/100
|
66
|
100
|
870(940)±15
|
710
|
2248
|
148/118
|
410
|
185
|
|
|
FXBW4-110/100
|
110
|
100
|
1240(1440)±15
|
1000(2080)
|
3150(3860)
|
148/118
|
550
|
230
|
|
|
FXBW4-110/160
|
110
|
160
|
1340±15
|
1000
|
3380
|
148/118
|
550
|
230
|
|
|
FXBW4-145/120
|
145
|
120
|
1480±30
|
1240
|
4123
|
148/118
|
725
|
355
|
|
|
FXBW4-220/100
|
220
|
100
|
2240(2350)(2470±30)
|
2020(2080)(2210)
|
6450(6760)(7150)
|
148/118
|
1000
|
395
|
|
|
FXBW4-230/160
|
230
|
160
|
2990±30
|
2600
|
9075
|
148/118
|
1425
|
570
|
|
|
FXBW4-220/210(160)
|
220
|
210/160
|
2350±30
|
2000
|
6800
|
158/128
|
1000
|
230
|
|
|
FXBW4-330/210(160)
|
330
|
210/160
|
2930±30
|
2650
|
8790
|
158/128
|
1425
|
570
|
|
|
FXBW4-500/210(160)
|
500
|
210/160
|
4450±30
|
4075
|
14860
|
195/158/128
|
2050
|
740
|
|
Specification
Product Name: 110-220KV Composite suspension InsulatorModel: FXBW4
Manufacture and test Standard: IEC, ANSI, GB
Manufacture and test Standard: IEC, ANSI, GB

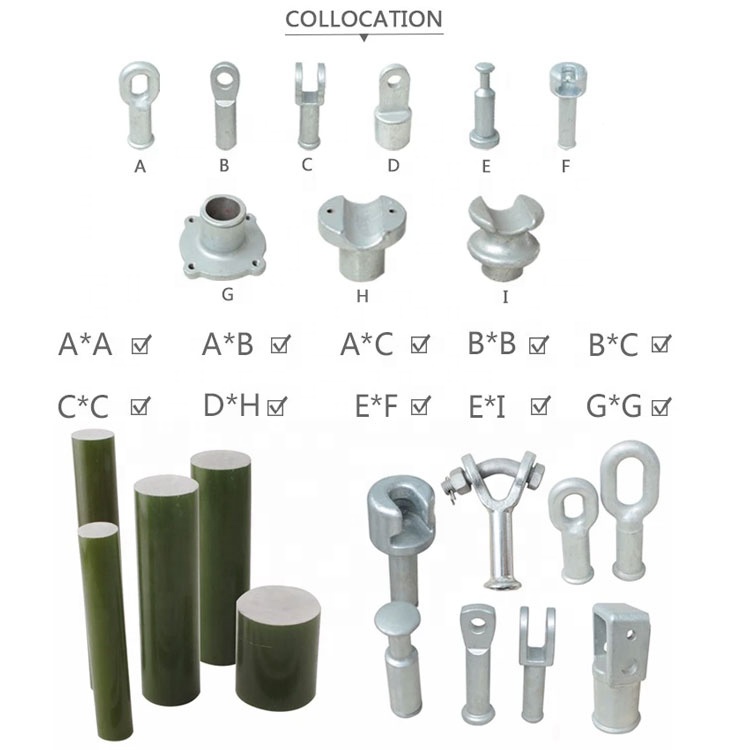

Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings
